Ultra-high frequency (UHF) RFID solution : RFU630-13100

RFID, Radio frequency identification

Vote

Ask for a quote

Presentation

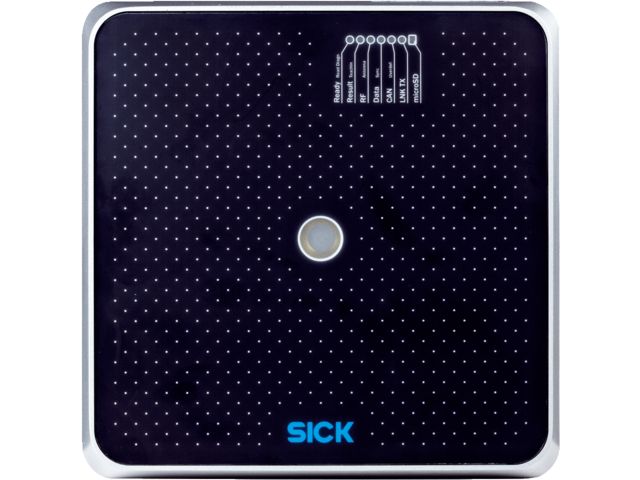

The RFU63x is an ultra-high frequency (UHF) RFID solution for industrial environments. Via integrated application management software, the RFU63x is able to solve common industrial applications without any external "middleware" and can, therefore, be used as a stand-alone solution. This is possible due to an integrated filter and data management system.

With 4Dpro compatibility, the RFU63x is easy and cost-efficient to integrate in common industrial environments. Different options for parameter cloning between systems (e.g., integrated microSD memory card feature) reduce maintenance time. The integrated feedback LED can be used to read diagnostic or process feedback.

At a glance

• UHF RFID read/write unit for industrial applications

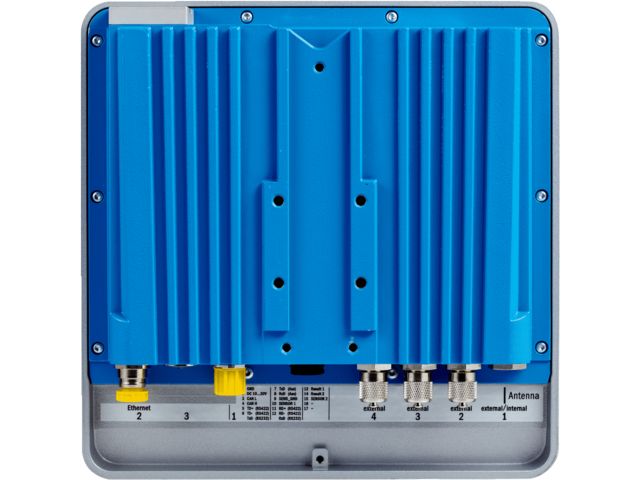

• With or without integrated antenna, depending on the type (up to four external antennas can be connected)
• Standard-compliant transponder interface (ISO/IEC 18000-6C/EPC G2C1)
• Supports common industrial data interfaces and fieldbuses

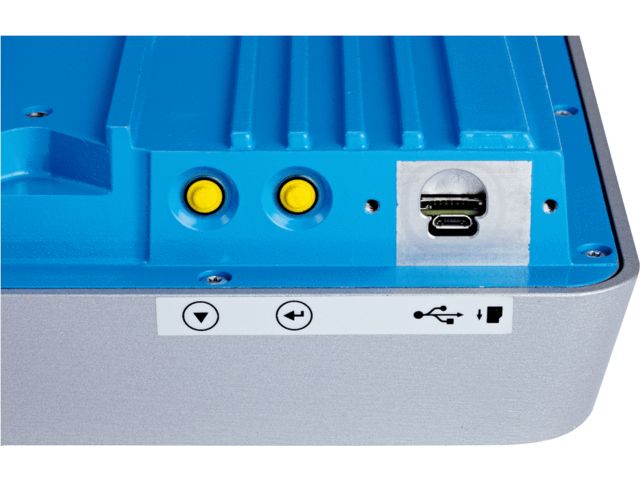

• MicroSD memory card for device parameter cloning
• Several diagnostic and service options available

Technical features

Enclosure rating : IP67 Housing : Aluminum die cast Power consumption : < 20 W, with switching outputs not connected and full transmit power Weight : 2.6 kg Dimensions (L x W x H) : 239 mm x 239 mm x 64 mm

Download the complete technical features
