Ultrasonic measurement Time-of-Flight Prosonic FMU41 Endress+Hauser France

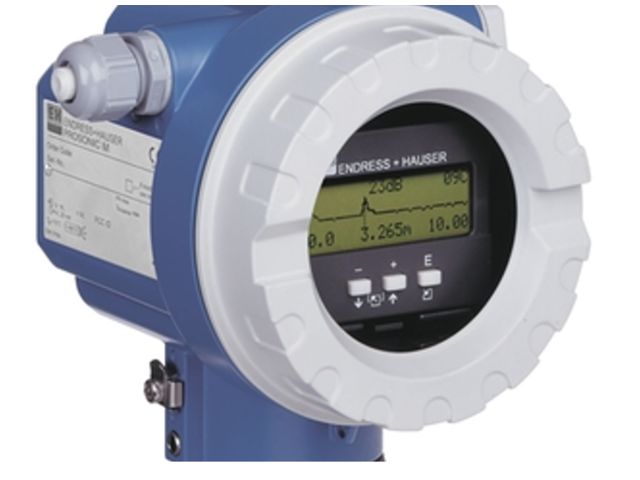

Ultrasonic measurement Time-of-Flight Prosonic FMU41

Level indication

Vote

Go to the supplier’s website Receive Documentation Ask for a quote

Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 8m.

The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs.

The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts.

The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Accuracy +/- 2 mm or +/- 0,2 % of set measuring range 1) Process temperature -40 °C ... 80 °C (-40 °F ... 176 °F) Process pressure absolute / max. overpressure limit 0.7 bar ... 3 bar abs (10 psi ... 44 psi) Max. measurement distance 3.5 m (11 ft) Main wetted parts PVDF
Download the complete technical features
