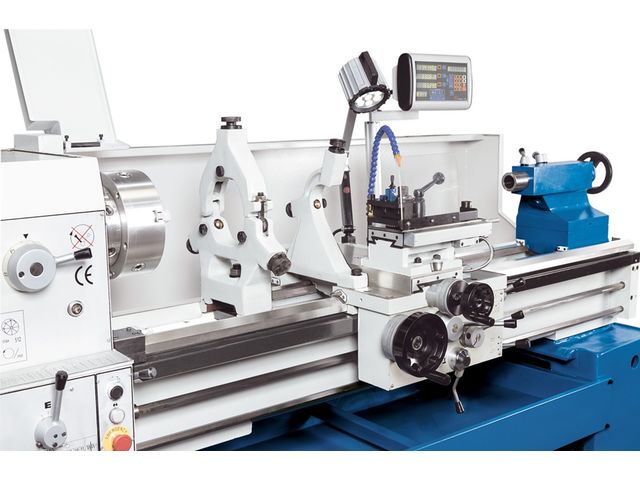

Universal Lathe Compass 200/1500 B

One lathe for single-part and batch production including 3-axis assembled

• very rigid machine bed with heavy ribbing
• center width 1500 mm
• max. turning diameter over bed 400 mm
• wide v-guides, induction-hardened and precision-ground
• maximum accuracy and quiet operation even at high speeds
• large 65 mm spindle capacity
• high machining performance with heavy-duty 5.5 kW main drive
• infinitely variable slip clutch allows working with stops
• accuracy tested according to DIN 8606, best surface roughness of 1.6 µm/N7 acc. to DIN 1302
• removable gap bridge for machining of large diameter parts
• large spindle capacity (65 mm) for machining of long parts
• to ensure maximum accuracy and smooth operation at high speeds, the main spindle is dynamically balanced and supported by adjustable precision bearings
• eliable lubrication of the guideways through central lubrication mounted inside the apron
• includes time-saving foot brake

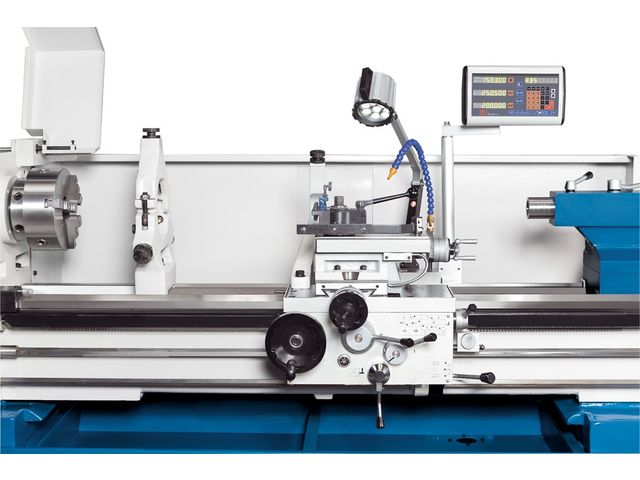

3-axis position indicator

• more accuracy
• lower error rate
• increased productivity
• resulting in valuable time savings
• for increased productivity
• easy to read display
• operator-specific features
• convenient keyboard layout
• resolution: 0.01/ 0.005 mm
• default coordinates
• axis position is maintained when display is turned off
• hole circle pattern calculation
• calculator function
• storage for 10 tools
• radius / diameter toggle
• mm/inch conversion
• easy expansion and maintenance-free operation
• display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
