Vacuum lifting devices, VACUOGRIP (VGH / VGR)

Industrial handling systems

Vote

“ . Fast and easy to implement . Humanizes the most strenuous physical labour . Productivity gains . Loads can be handled by a single operator . Will not cause any deterioration of handled loads . Improves working conditions . Easy to use . Quick return on investment . Complies with EC directives ”

Ask for a quote

Presentation

The VACUOGRIP line of vacuum lifting devices is COVAL’s standard product addressing such needs as horizontal handling and 90° tilting of smooth and non-porous loads by a single operator.
They are easy to use, benefit from outstanding reliability and all-round ruggedness, and are available in electric and pneumatic versions.

VACUOGRIP vacuum lifting devices are specifically designed for the following applications:
. Palletizing and depalletizing
. Feeding machinery
. Unloading conveyors

Ergonomics

Using VACUOGRIP vacuum lifting devices allows you to improve working conditions by reducing operator fatigue and accidents for all operations involving horizontal handling of sheet metal weighing up to 1,000 kg and 90° tilting of sheets weighing up to 500 kg.

SAFETY

The VACUOGRIP line includes the following safety features:
. Vacuum tank in main beam
. Check valve
. Vacuum gauge with red/green operating ranges, pointer indicates the vacuum level in suction cups
. Warning Alarm in case of power cut or drop of vacuum level
. Power on indicator
. 2 red “Release” buttons that force the user to use both hands
According to your applications and needs, additional features can be selected from the Option Packs.

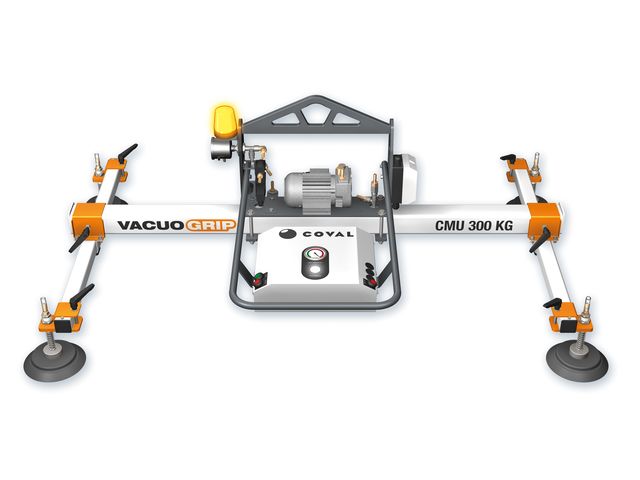

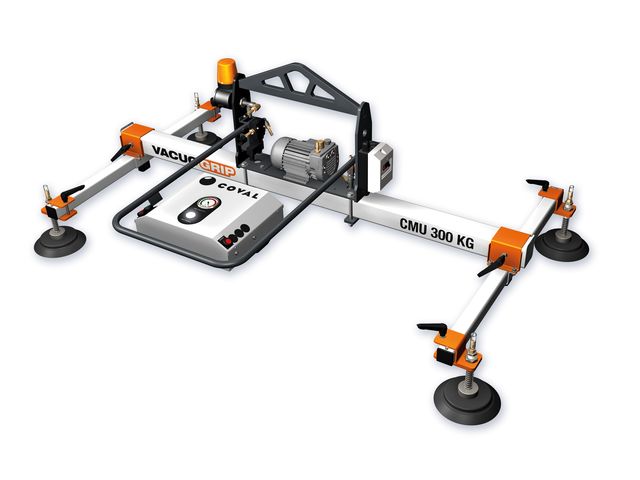

VGH : Horizontal vacuum lifting devices
Horizontal handling of loads from 100 to 1,000 kg

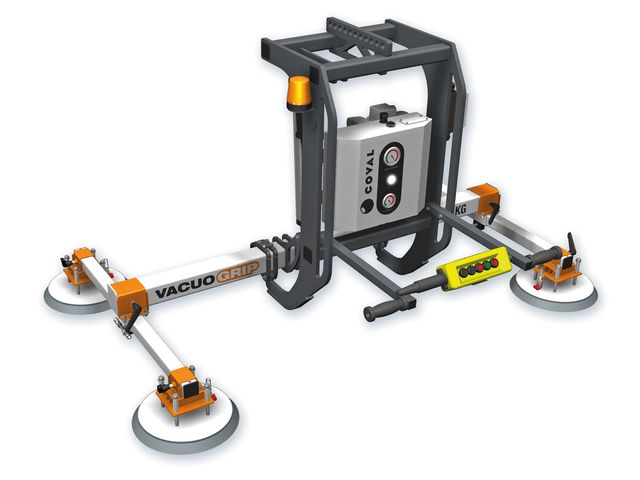

VGR : 90° tilting vacuum lifting devices
Handling loads from 100 to 500 kg

COVAL vacuum lifting devices comply with the EU Machinery 2006/42/EC and Low voltage 2014/35/EU
directives as well as with European standard EN 13155.

Technical features

Fast and easy to implement Humanizes the most strenuous physical labour VGR: Horizontal handling of loads from 100 to 1,000 kg VGR: 90° tilting, Handling loads from 100 to 500 kg

Download the complete technical features
