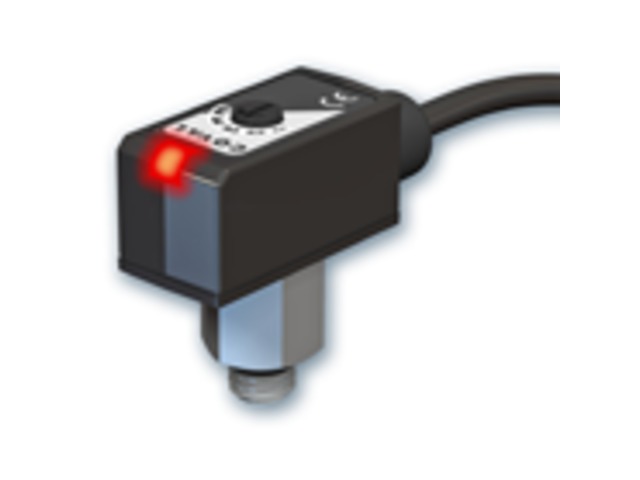

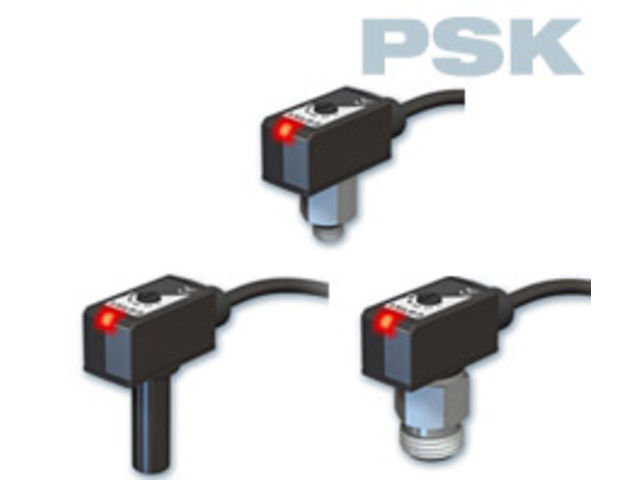

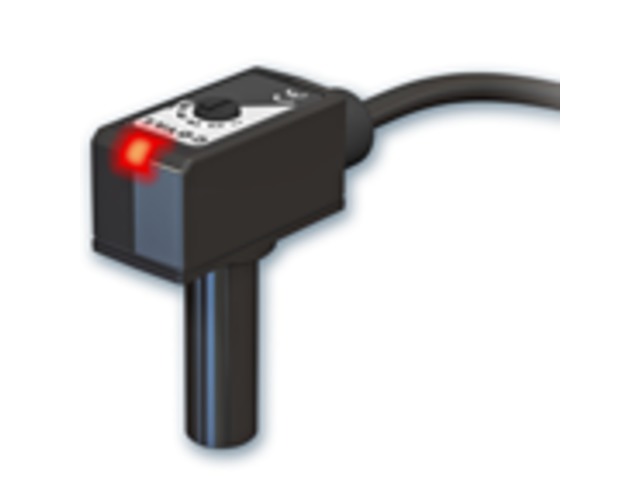

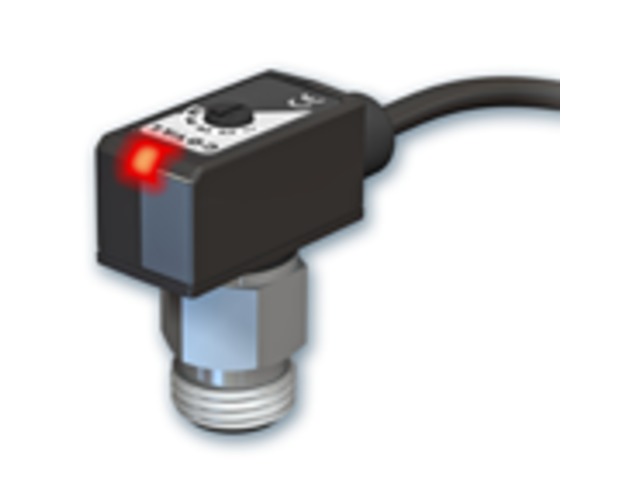

Vacuum switch PSK series

Vacuum switch

“ Simple installation: Plug-in port for push-to-connect fittings Compact size: Extremely compact size 26(L)x10(W)x10,4(H)mm to fit the most confined areas. ”

Ask for a quote

Presentation

Thanks to their compact and ultra light design, the PSK series adjustable mini vacuum switches enable installation to be as close as possible to the suction cups to reduce reponse times.
PSKs are ideal for applications that only need a simple "object gripped'' signal, and offer an economical and effective solution for applications with one vacuum generator per suction cup. Simple installation Plug&Play (M8 connection). - Simple installation, plug-in port or thread-in fitting
- Compact size: 26x10x10,4mm
- Setting pressure range: Switch: 100: vacuum
- Three vacuum connection possibilities:
• push fitting Ø6mm, Male M5 or threading G 1/8”(BSPP)
- Electrical connection: M8 connection 3-pin

• Setting pressure range 100: vacuum
• Hysteresis 3% F.S. max.
• Setting method: Adjusting by VR
• PNP
• Withstand pressure: 0,6 MPa
• Weight: Approx. 8.3g (with M8, 3-pin male connector)

Technical features

Vacuum switch

Download the complete technical features
