EDWARDS SAS

Vapour Pump Diffstak 250/2000P, 110-125 V, 1Ø, 50/60 Hz EDWARDS SAS

Vapour Pump Diffstak 250/2000P, 110-125 V, 1Ø, 50/60 Hz

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation.

The Edwards Diffstak 250 (ISO250 inlet) design has been proven over many years with thousands of pumps installed.

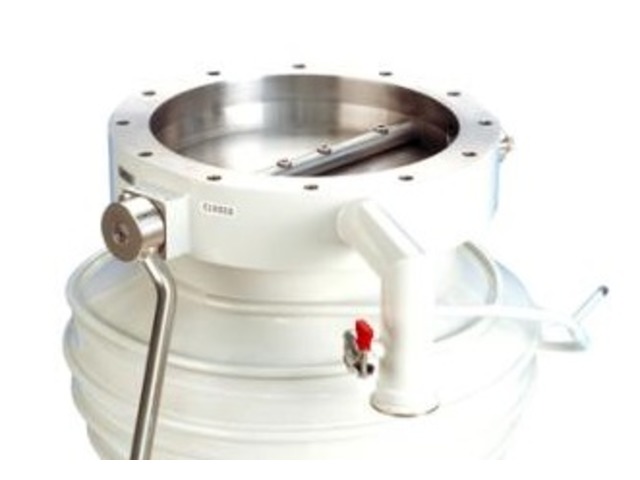

This pump has a pneumatically actuated high vacuum isolation valve and is supplied with: NW40 elbow, NW40 centering-ring, NW40 clamp, water pipe couplings and ferrules, inlet ISO 250 trapped ‘O’ ring.

Fluid charge (dry) : 500 ml Inlet connection compatible with : ISO250 Backing connection : NW40 Cooling water connection : 10 mm compression fittings Heater power : 2.25 kW Min cooling-water flow at 20°C : 180 l h-1

Drop your rating on Vapour Pump Diffstak 250/2000P, 110-125 V, 1Ø, 50/60 Hz
