Variable area flowmeters Series 2000

Gas flowmeters

Vote

“ Options: - 1 or 2 adjustable switches (optical detector, inductive sensor or reed switch) - Constant flow regulator RCD or RCA - Without valve ”

Ask for a quote

Presentation

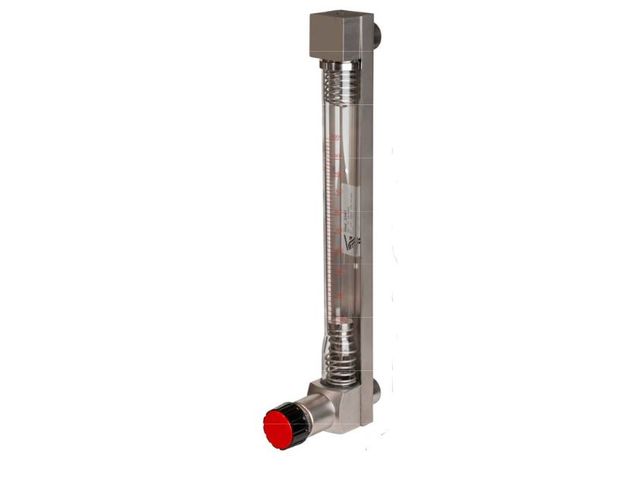

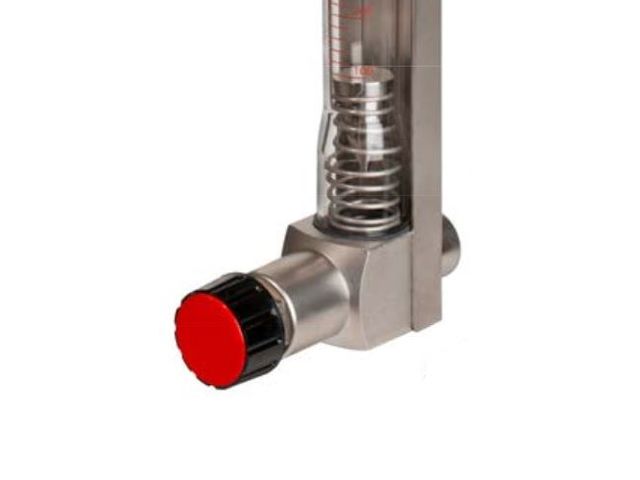

Variable area flowmeters for low flow of gas and liquid. Compact construction and small size, recommended for control panels. Easy installation. Regulating needle valve for precise flow adjustment. Application areas: Control panels, pilot plants, measurement and control on machinery, water purification (osmosis), control of gas burners, industrial and process refrigeration, treatment ovens... Technical specifications:

Measuring ranges:

0,1 l/h ... 1000 l/h H2O
1Nl/h ... 30 Nm3/h air

Accuracy:

2100 model ±3,5% f.s.
2150 model ±3% f.s.
2300/2340 models ±1,6% f.s.

Connections:

2100/2150/2300 models 1/4” BSP, NPT
2340 model 1/2” or 3/4” M BSP, NPT

Materials:

Flow tube: borosilicate glass
Wetted parts: EN 1.4404 (SS 316L)
Float: EN 1.4404 (SS 316L), glass, plastic, ceramic

Local indication

Options:

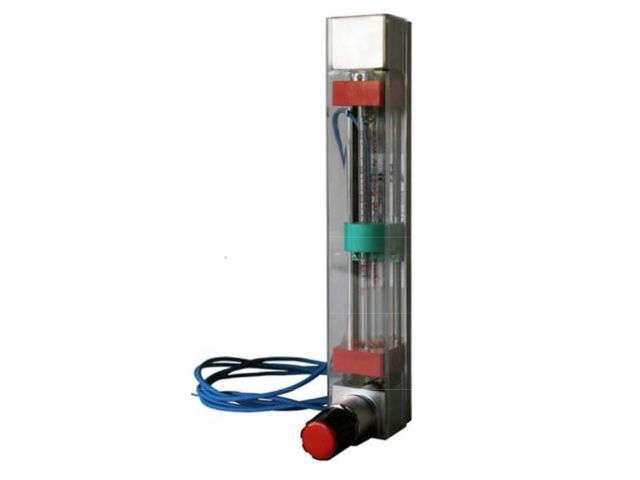

1 or 2 adjustable switches (optical detector, inductive sensor or reed switch)
Constant flow regulator RCD or RCA
Without valve

Technical features

Measuring ranges: 0,1 l/h to 1000 l/h H2O / 1Nl/h to 30 Nm3/h air Accuracy : 2100 model ±3,5% f.s. / 2150 model ±3% f.s. / 2300/2340 models ±1,6% f.s. Connections: 2100/2150/2300 models 1/4'' BSP, NPT / 2340 model 1/2'' or 3/4'' M BSP, NPT Flow tube: borosilicate glass Wetted parts: EN 1.4404 (SS 316L) Float: EN 1.4404 (SS 316L), glass, plastic, ceramic

Download the complete technical features
