Vibration Limit Switch : VIBRACONTROL

Features :

Electronics

• User preset parameters:

- Digital output: NPN, PNP (free contact)
- Measuring range: 10, 30, 100 mm/s

• User adjustable parameters (through 2 linear potentiometers and 2 test led):

- Alarm threshold: 0.1 - 100% of the full scale value
- Operating delay: 0 - 30 s

• Frequency range: 5 - 1000 Hz
• Power supply: 24 V DC/AC – 50 mA

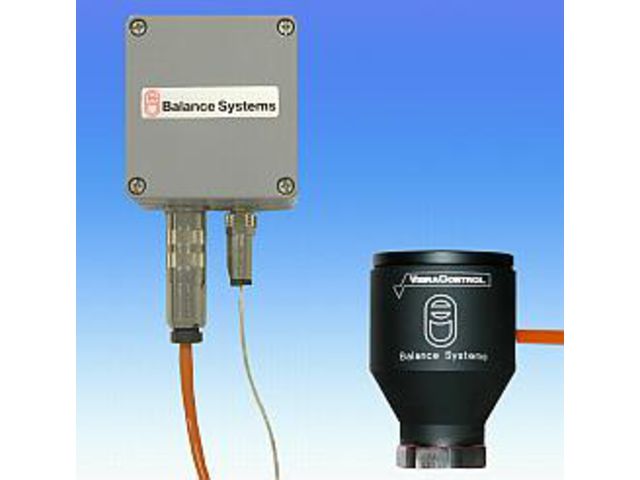

Stand-alone version
• Overall dimension: 47 x 67 mm (Ø x H)
•Fixing dowel screw: M6x1
• IP65 rated construction
• Connection cable with wire terminals
(Length: 5 meter)
• Accessories: magnetic base for mount on flat or round surfaces

Remote version
• Vibration transducer
• (To be installed close to the source of the vibration)

• Thread of the sensor case: M16x1
• Case material: AISI 303
• 3 meter cable for the connection between the transducer and the remote electronics
• IP68 rated construction

Electronics
(Remote installation)
• Overall dimension: 75 x 75 x 75 mm
• Connection cable with wire terminals (Length upon request)
• IP65 rated construction
