VS16K Adjustable Vacuum Switch EDWARDS SAS

VS16K Adjustable Vacuum Switch

Vote

Ask for a quote

Presentation

The VS16K is a general purpose vacuum switch with a user adjustable set-point and small switching differential. This diaphragm operated vacuum switch is high vacuum compatible and corrosion resistant with all wetted parts made from stainless steel.

A high current rating allows direct switching of loads without additional relays or external power supplies.

This switch should not be used for safety critical applications. For many interlock applications the Edwards IS16K may be more suitable.

Technical features

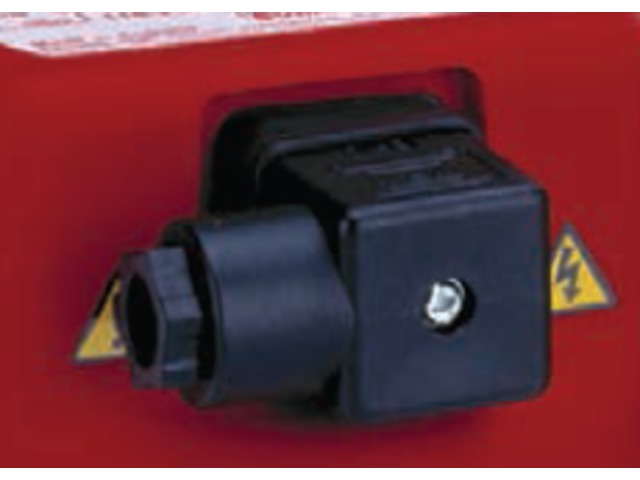

Range of adjustment : 30 to 1000 mbar Maximum switching differential : 30 mbar Maximum working pressure : 1 bar gauge (2 bar absolute) Electrical rating : 10 A resistive, 5 A inductive at 250 V a.c. Electrical connection plug : Type 283 mPm Internal volume : 7 cm3 Materials in vacuum : Stainless steel Leak rate : <1 x 10-9 mbar l s-1 Enclosure classification : IP52 Weight : 0.7 kg

Download the complete technical features
