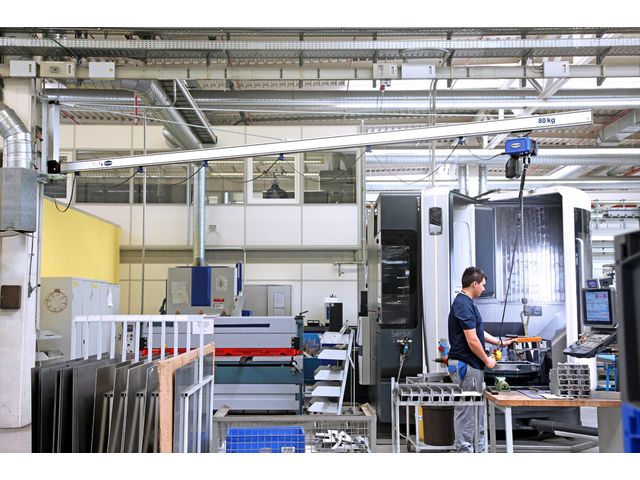

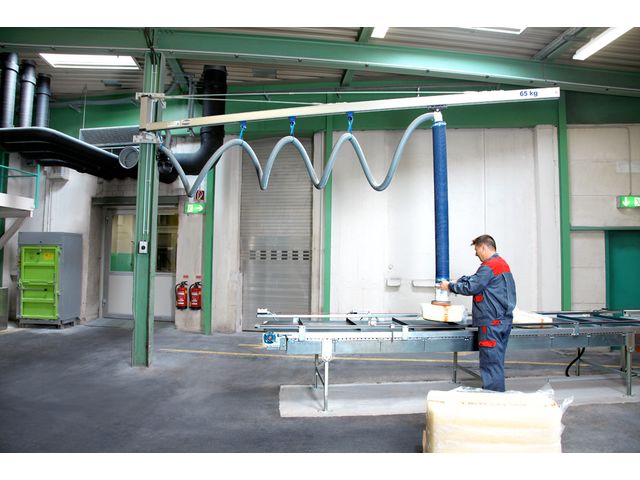

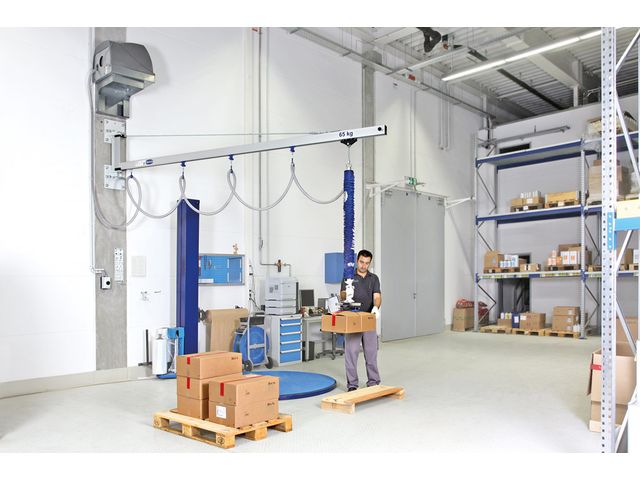

Jib cranes from Schmalz are very versatile and can be combined with many lifting devices such as chain hoists, rope hoists, rope balancers or vacuum lifting devices. The jib crane is attached to an existing column or wall and has a pivoting angle of 180°. This enables the optimum use of existing hall dimensions. Schmalz offers various solutions for attaching the crane according to the customer's local conditions. Special, newly developed, wall consoles for attachment of the wall-mounted jib crane permit easy installation.
For a weight of up to 1,000 kg, the crane systems use aluminium crane rails. This guarantees extreme responsiveness and supports ergonomic and fatigue-free working. Once a load of more than 1,000 kg is to be lifted, steel crane rails are used. All crane columns are anchor-ready, no additional intermediary plates are necessary.
Design and Function
-
Aluminum crane rail and pivot bearing (with the same jib boom as the column-mounted jib cranes)
-
Mounted using a wall bracket or clasp bracket (for example on a building column in a production room)
-
Use in combination with hoists such as chain hoists, rope hoists, rope balancers or vacuum lifting devices
-
Maximum load of up to 1,000 kg
Product Highlights
-
Ideal utilization of existing hall conditions
-
Excellent smooth running properties thanks to low moving mass
-
High working speed and positioning accuracy
-
Wall-mounted slewing cranes contribute to ergonomic and fatigue-free working
-
High-quality, low-wear components
-
Modern design with anodised profile surface
