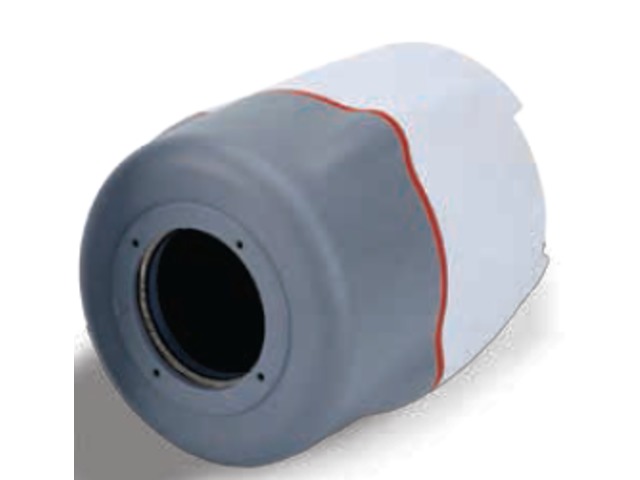

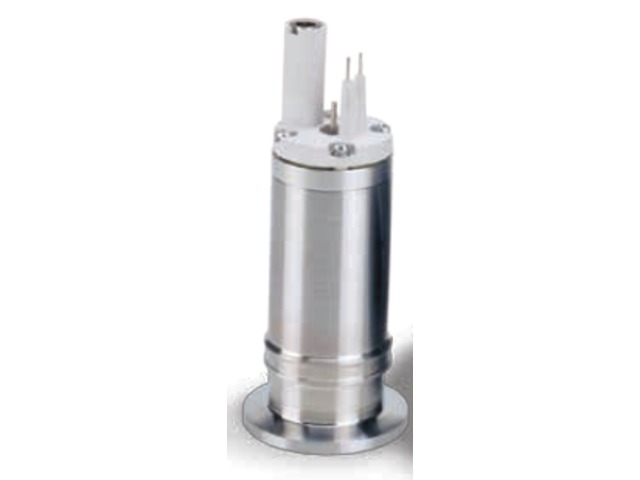

Wide Range Gauge WRG EDWARDS SAS

Wide Range Gauge WRG

Other pressure sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

The Wide Range Gauge (WRG) family offers the capability of single port pressure measurement in the range atmosphere to 10-9 mbar with a linear output. Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications.

The WRG has many novel features, including a new patented striker, pushbutton calibration and set point controls and comprehensive diagnostics.

The WRG is a cost-effective vacuum management solution when used either with a Edwards controller or directly integrated into the system controls.

Maximum over pressure : 6 bar absolute (87 psia) Power supply : +14.5 to +36 V d.c. Power consumption : 2 W maximum Output signal : 1.8 to 10.2 V d.c. Adjustments : Atmosphere and setpoint Set point : Open collector transistor Maximum voltage : 40 V d.c. Current : 100 mA maximum Internal volume : 26 cm3 Weight : 0.8 kg
