Wine Analysis System: Alcolyzer Wine M/ME

Densimeters and refractometers

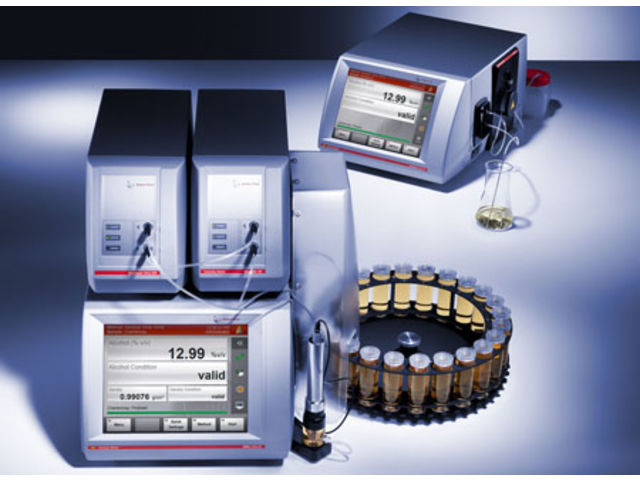

“ Efficient and high-performance wine analysis Measure the alcohol content of wine, sparkling wine, cider and sake from 0 to 20 %v/v Other wine constituents have no influence on the alcohol analysis Fill the measuring cell via syringe, peristaltic pump or automatic sample changer Low sample volume, high sample throughput Optional pH and turbidity measurement Save time in the lab Minimum sample preparation Short measuring cycles No cleaning between samples Universal adjustment saves you time Adjustment/calibration with water and an alcohol/water solution One single adjustment is valid for all your samples 10.4" touchscreen Applies state-of-the-art PCAP technology Provides a premium user experience ”

Ask for a quote

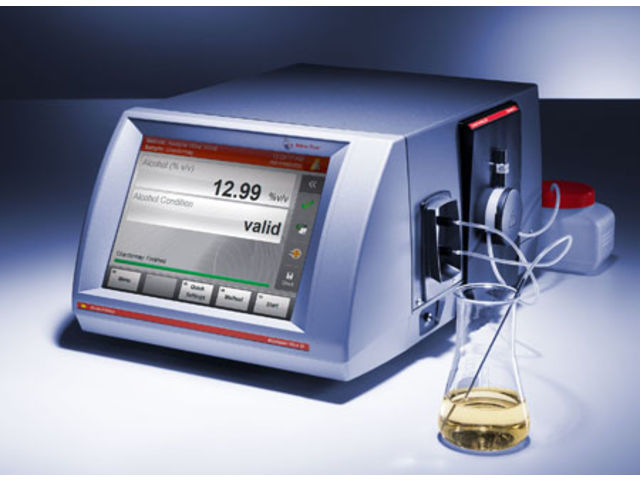

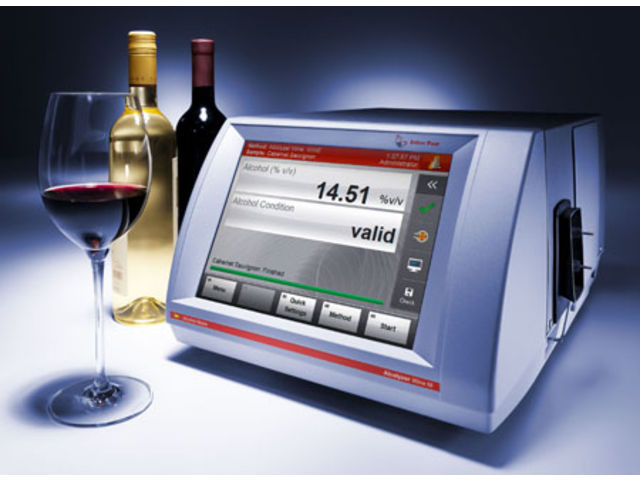

Use the Alcolyzer Wine M/ME wine analysis system to determine the alcohol content of your wine quickly and easily. When combined with a density meter, Alcolyzer Wine M/ME determines further parameters in a single cycle, e.g. extract content. The measuring method for selective alcohol determination eliminates the influence of other sample constituents on the alcohol measurement and therefore guarantees highly precise results.

Selective alcohol determination uninfluenced by other ingredients
Measure the alcohol content of wine, sparkling wine, cider, and sake in less than three minutes
Obtain highly accurate results, independent of type and vintage
Minimum sample preparation and short measuring cycles

Technical features

Measurement range: 0 to 20%v/v Repeatability standard deviation: 0.01%v/v alcohol Temperature control: Integrated solid thermostat (Peltier effect) Temperature repeatability: 0.01°C Minimum sample quantity: 3 mL Typical measurement time per sample: 2 minutes Sample capacity: 10 to 30 per hour

Usage scope

Wine
