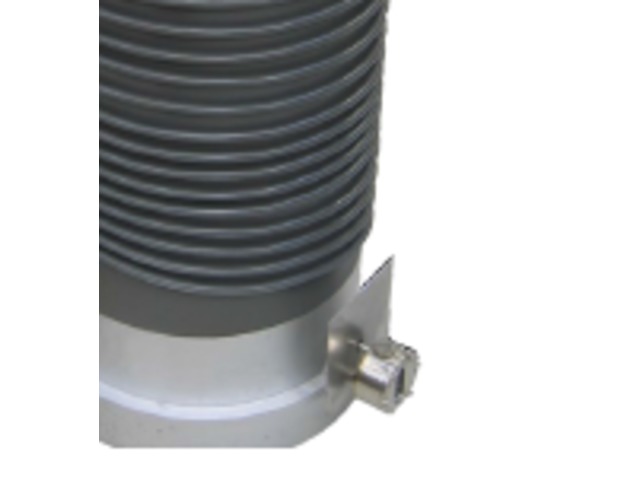

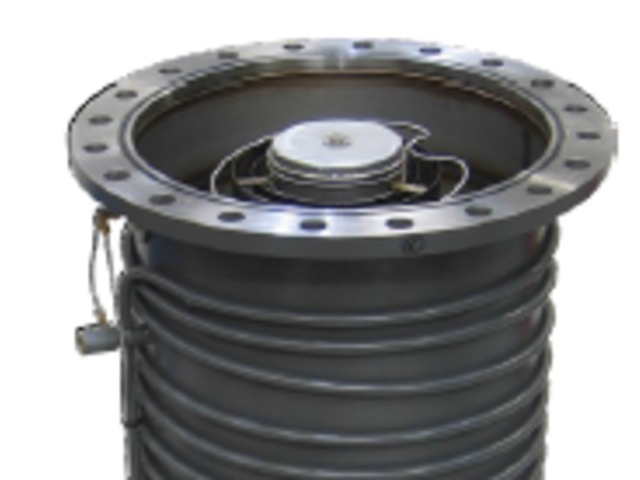

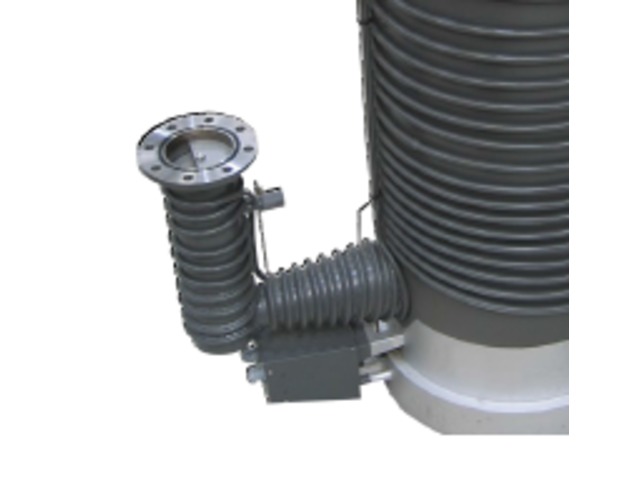

High Throughput Diffusion Pumps HT20B ISO630/ISO160, 220V EDWARDS SAS

High Throughput Diffusion Pumps HT20B ISO630/ISO160, 220V

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

The HT high throughput series is the pinnacle of our diffusion pump knowledge with technology aimed specifically at industrial users. Edwards diffusion pump is designed for all light and heavy duty industrial applications. The robust construction gives high pumping speed at high pressure.

The cast and machined aluminium interior provides consistent performance, while the stainless steel body prevents corrosion and ensures process cleanliness.

These pumps are designed to give a high throughput (pressure multiplied by pumping speed) at 4 × 10-3 mbar making them ideal for industrial processes that involve large quantities of gases.

Comparative pumping speed : 18000 ls-1 Recommended backing pump : GXS250, E2M175 Recommended fluid : DC704 Fluid charge (dry) : 3600 ml / 3.8 qt Water connection : 3/4 inch NPT female Heater power : 12.6 kW / 16.9 hp Warm up time : 60 min Minimum cooling water flow at 25°C : 960 l h-1 / 4.2 US gal min-1 Pressure drop across cooling water supply : 1.2 bar / 17.4 psi Weight : 275 kg / 605 lbs
Download the complete technical features
