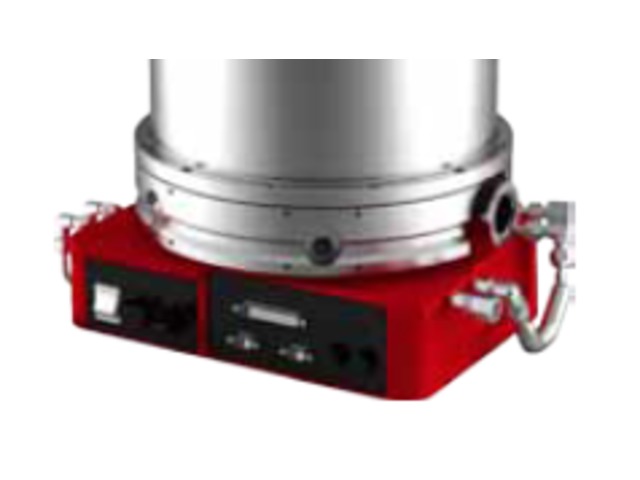

Magnetically levitated turbomolecular pump : STP-iXA2206C ISO250F EDWARDS SAS

Magnetically levitated turbomolecular pump : STP-iXA2206C ISO250F

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

The STP-iXA2206 series magnetically levitated turbomolecular pump provides industry-leading performance and incorporates a small power supply into the onboard control unit – the latest technology of the well-established STP-iXA2205 series.

The height of the pump is equal to the STP-A2203C and is also equal to the height of the STP-iXA2205 series without it’s power supply (iPS-1200). This fully integrated product offers easy installation and a small footprint as an all-in-one solution for all application tools.

Inlet flange size : ISO250F/VG250/ICF305 Backing port size : KF40 Pump speed N2/Ar : 2200/1900 ls-1 Compression ratio N2/H2 : >108 / 1 x 104 Ultimate pressure : 10-7 Pa (10-9 Torr) Allowable backing pressure : 266 Pa (2 Torr) Max gas flow N2 (water cooled only) : 3000 sccm Max gas flow Ar (water cooled only) : 1400 sccm Rated speed : 27000 rpm Run-up time to 90% rated speed : <8 minutes
Download the complete technical features
