PF3 AGV Platform

Automatic guided vehicles (AGV)

Vote

Ask for a quote

Presentation

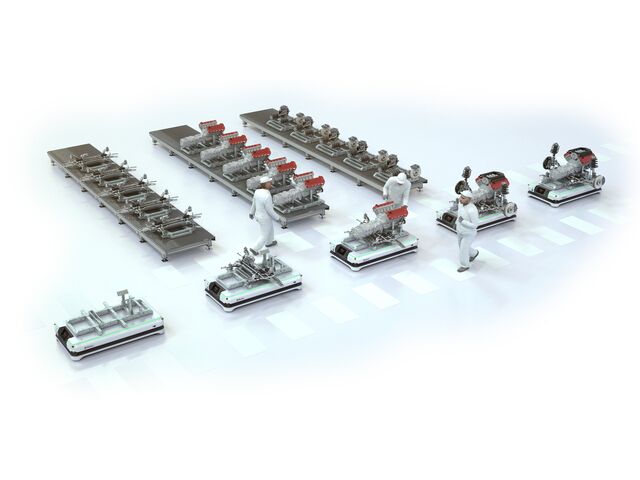

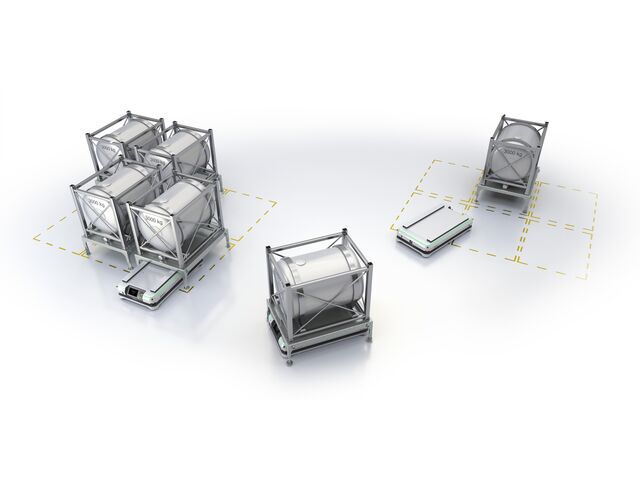

Stäubli designs and manufactures premium AGV (Automated Guided Vehicle) solutions. The new Stäubli 3-ton AGV platform, PF3, opens up new industrial applications.

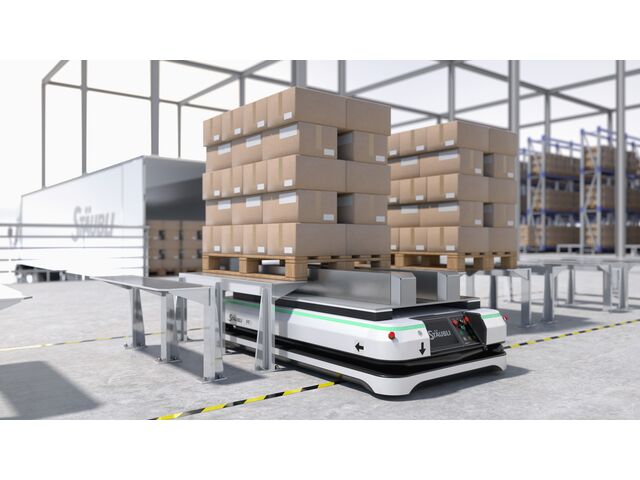

The Stäubli PF3 offers outstanding performance. Its ultra-compact design allows it to carry and lift up to 3-ton payloads with high positioning precision. Safe and low profile, the PF3 allows future-proof production and smart workflow.

SAFETY FIRST
• Human safety scanner
• 5x emergency stop buttons
• Status communication with LED strip
• Collision avoidance

EASY TO INTEGRATE
• Electrical and mechanical interface for third party add-ons
• Standard software interfaces

INDUSTRIAL-PROOF COMPONENTS
• Unique drive unit
• Secured supply chain
• Built to last

EASY MAINTENANCE
• Sideway access to components
• Quick change of critical parts in minutes

TCO - LONG-LASTING DESGIN
• Up to 7.000 recharging cycles
• Super fast charging up to 80A
• Very robust & reliable technology

Technical features

Max payload (ton) : 3 Dimensions W x L x H (mm) : 1750 × 970 × 350 Turning radius (m) : 1,7 Drive type : Tricycle Max speed (m/s) : 1,6 Ground clearance (mm) : 30 Position accuracy (mm) : Up to ± 10 Height without lift unit (mm) : 350 Height with lift unit (mm) : 400
