Thermal press for sealing lids on thermoformed hulls Z41 CA PTA

Heat sealer

Vote

Ask for a quote

Presentation

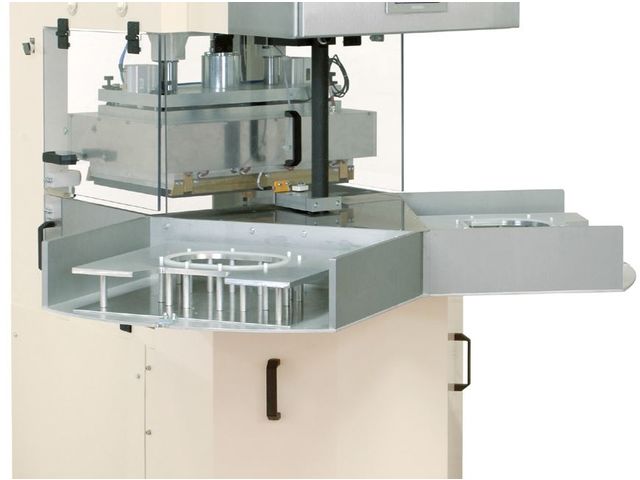

The Z41 thermal press (3 guide columns) is designed for soldering coverings on thermo-formed hulls.

Its pneumatic technology makes it both simple and comfortable to use, while the rigidity of its structure ensures its durability.
Its alignment is adjusted by a bearing system with micrometric screws for perfect sealing precision.

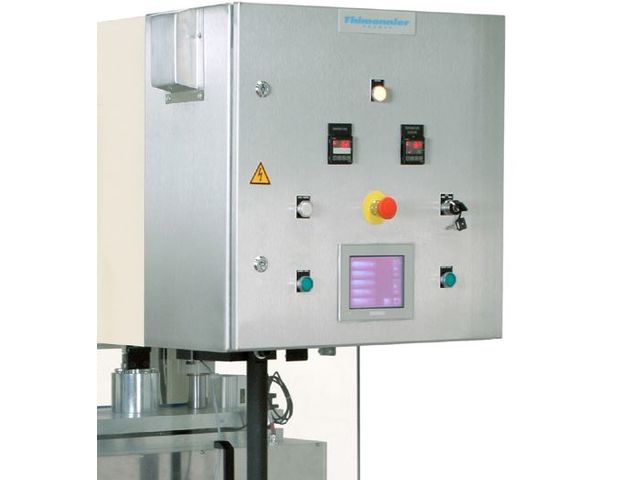

Controlled completely automatically, for greater flexibility of use its control desk comes equipped with a standard Proface touch screen for intuitive handling and reading of production parameters.

Parameters can be exported via USB port for tracking of control and repeatability:
- sealing times
- pneumatic pressure

The Z41 BS is equipped with backup safety systems:
- Turntable rotation initiated with double button push and mechanical indexing.
- Standard «light curtain» type system.
The tools are replaced by indexing and pneumatic locking, saving handling time.

OPTIONS :
- Stainless steel screws
- Centralised connection of air exhausts
- Device for preventing crushing

Technical features

Plate diameter: 1750 mm Worktop height: 920 mm ± 10 mm Pneumatic lifting during rotation Power supply: 400 V Tri. + N - 50 Hz Pneumatic supply: Effective pressure = 6 bar - Consumption = 5 - 10 Nm3/h Max. adjustable sealing pressure = 1200 Kg

Download the complete technical features
