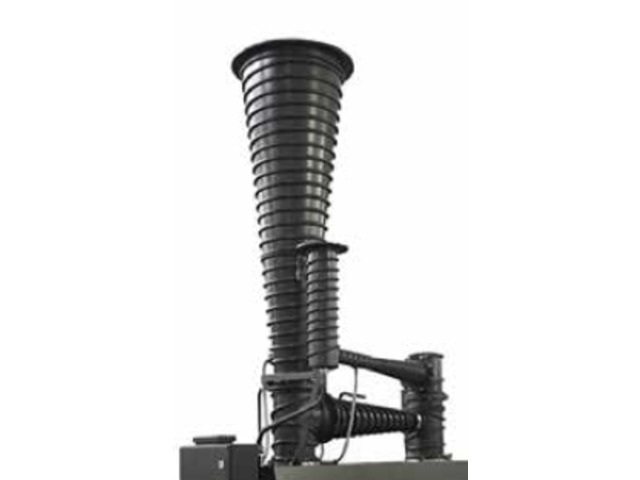

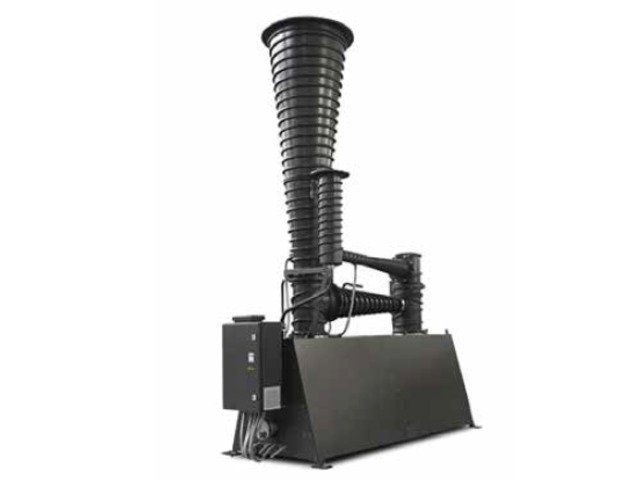

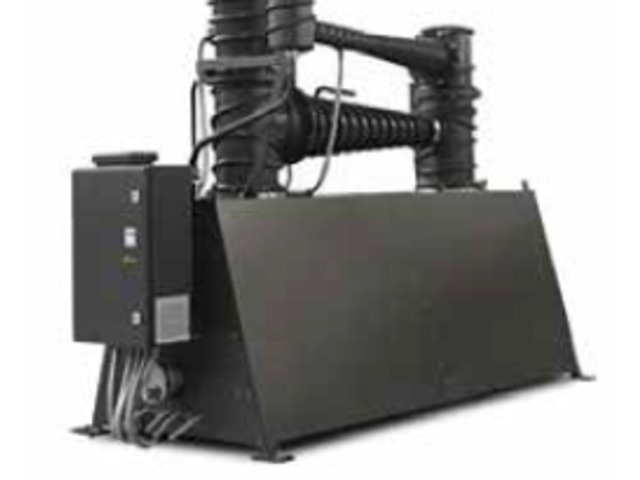

Vapour Booster Pumps 30B5M, 440V, 3Ø, 50/60 Hz with Terminal Box EDWARDS SAS

Vapour Booster Pumps 30B5M, 440V, 3Ø, 50/60 Hz with Terminal Box

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

The Edwards 30B5M vapor booster pumps offer higher pumping speeds, of up to 15000 l s-1 at pressures intermediate between mechanical boosters and diffusion pumps. Vapor boosters from Edwards have been proven in the field for over 30 years.

With a constant program of updates and modernization, with input from OEM's and end users, combined with inherent reliability, ease of use and tolerance to various inlet and exhaust pressures they have been used extensively in metallurgy and coating industries as well as other specialist applications.

Pumping speed (air) : 12500 ls-1 Pumping speed (hydrogen) : 15000 ls-1 Critical backing pressure : 5.3-6 mbar Recommended backing pump displacement : 290 m3h-1 Recommended backing pump : GXS450, E2M275 Recommended fluid : Apiezon® AP201 Fluid charge : 55 litre / 52 qt Inlet connection : 12 x 20.60 holes on 686.0 PCD Backing connection : 4 x 16.70 holes on 235.0 PCD Water connection : 1 inch BSP
Download the complete technical features
