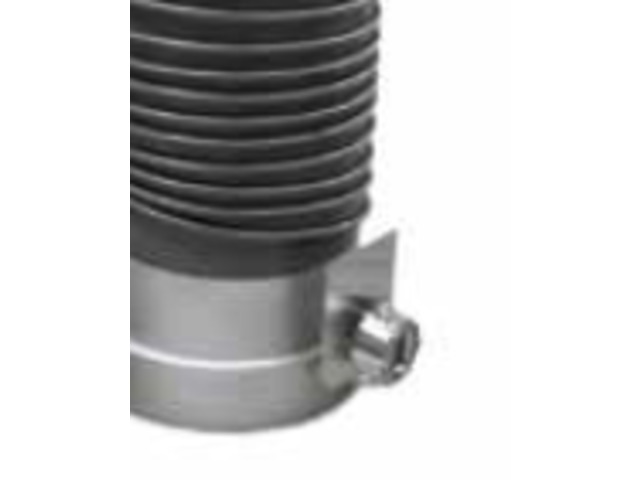

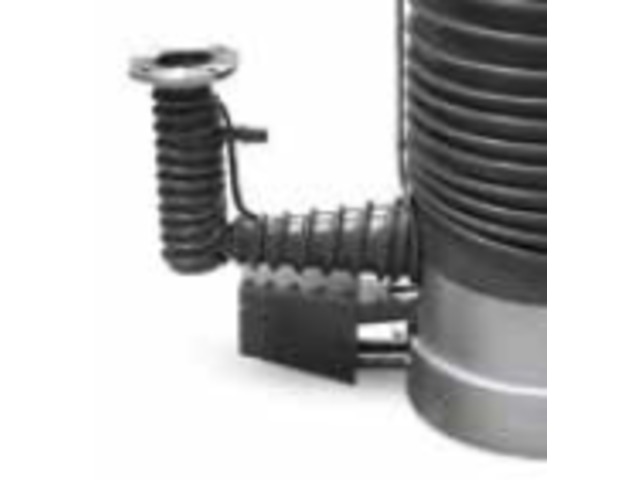

High Throughput Diffusion Pumps HT10 ANSI10/ANSI2, 415V EDWARDS SAS

High Throughput Diffusion Pumps HT10 ANSI10/ANSI2, 415V

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

The HT high throughput series is the pinnacle of our diffusion pump knowledge with technology aimed specifically at industrial users.

Edwards diffusion pump is designed for all light and heavy duty industrial applications. The robust construction gives high pumping speed at high pressure.

The cast and machined aluminium interior provides consistent performance, while the stainless steel body prevents corrosion and ensures process cleanliness.

These pumps are designed to give a high throughput (pressure multiplied by pumping speed) at 4 × 10-3 mbar making them ideal for industrial processes that involve large quantities of gases.

Comparative pumping speed : 4650 ls-1 Maximum throughput (nitrogen) : 10 mbar ls-1 Critical backing pressure (with DC704) : 1.1 mbar Minimum backing pump displacement for maximum throughput : 60 m3h-1 Recommended backing pump‡ : GV80, E2M80 Recommended fluid : DC704 Fluid charge (dry) : 1250 ml Inlet/backing connection : ANSI10/ANSI12 or EO12 inch/EO130 mm or ISO320/ISO63 Water connection : 3/8 inch NPT female Warm up time : 30 min
