Vertical packer for forming/ filling/sealing in plastic pouches M2500 DET THIMONNIER

Vertical packer for forming/ filling/sealing in plastic pouches M2500 DET

Packaging machines

Vote

Ask for a quote

Presentation

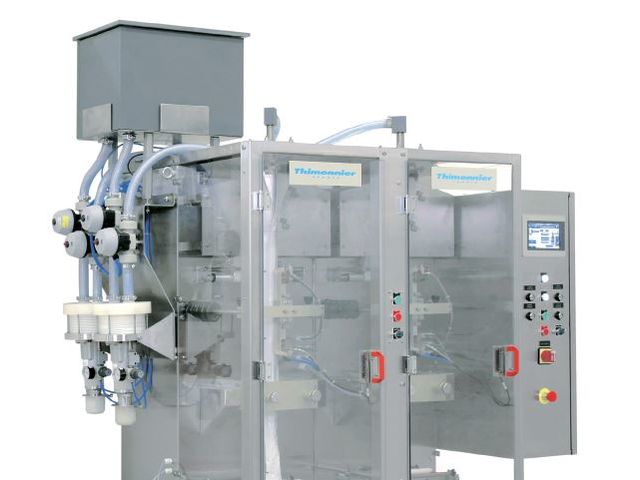

Vertical automatic packer with double spout:

THE M2500 is perfect for shaping, filling and sealing pillow pouches using pe film on reels.

The pouches are filled with air injected from a buffer tank that is under constant pressure and equipped with a proportional valve and a level sensor.

The M2500’s mechanical technology means that it is operated with actuators, making it easy to use, with precise dosage at high speeds.

Its frame is built with steel covered AINSI 304L stainless steel to ensure its firmness and longevity.

A Clean-in-Place (CIP) has been integrated into the M2500’s design.

All of the parts that come into contact with the product are built from stainless steel or from titanium for packing bleach.

Its pneumatic sealing grip control and its independent electrical cabinet make its maintenance easy and inexpensive.

OPTIONS
Coding device / 3 coding types are available:
- Pressure stamp on the longitudinal seal
- Programmable stamp with hot transfer tape
- Ink jet stamp
Dosage by pump for viscous products
(helicoidal pump with lobes or fl exible impulser)

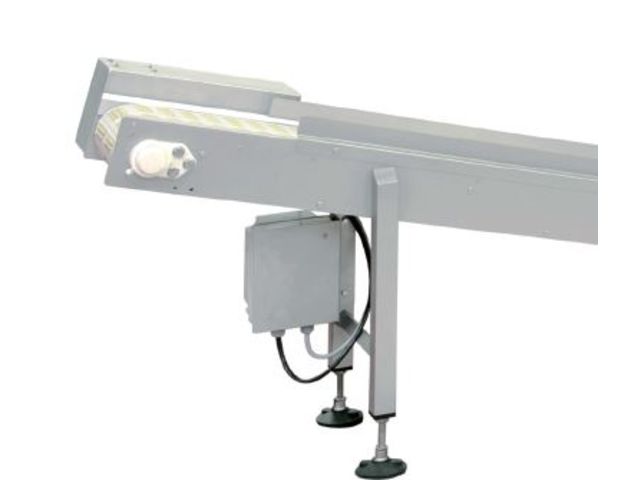

Exit conveyor
Automatic packer: the M 2500 comes with an optional automatic
pouch packing system with a counter.

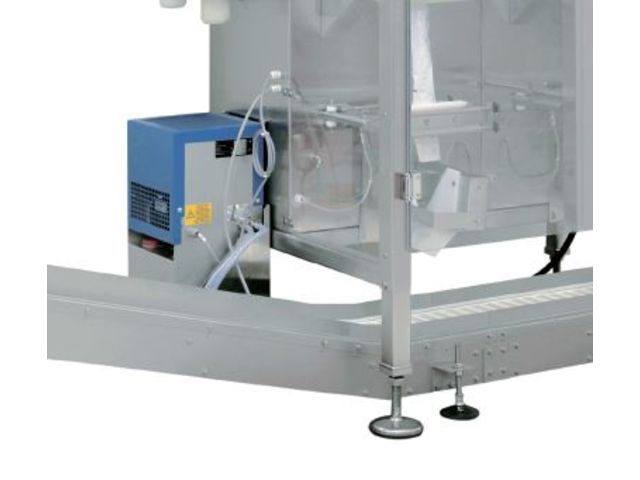

Air cooling unit

COSMETICS & DÉTERGENTS
LIQUID SOAP, LIQUID DETERGENT, SOFTENER,
DILUTED BLEACH…

Characteristics :
Excellent sealing ability
Highly reliable for production
User friendly
Low maintenance

Technical features

Film thickness: 50 - 120 microns Pouch sizes: Adjustable length of 40 - 260 mm Power supply: 230 V Mono – 50 Hz Cooling water supply: Inlet pressure = 1 - 6 kg/cm² - Q = 200 litres/h - Max. Temp = 20°C - 30°C RATE OF PRODUCTION: 5 000 - 6 000 PPH BAG VOLUME: 70 - 1 200 ML

Download the complete technical features

Opinion on the product
