2 x 2 RF Agile Transceiver : AD9361 EBV ELEKTRONIK

2 x 2 RF Agile Transceiver : AD9361

Semi conductors and Modules for power factor correction

Vote

Ask for a quote Receive Documentation Contact the supplier

The AD9361 is a high performance, highly integrated RF Agile Transceiver™. Its programmability and wideband capability make it ideal for a broad range of transceiver applications.

The device combines an RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor.

The AD9361 operates in the 70 MHz to 6.0 GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56 MHz are supported.

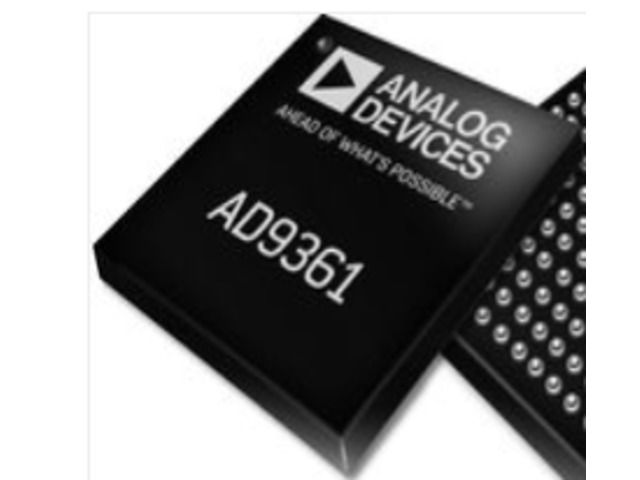

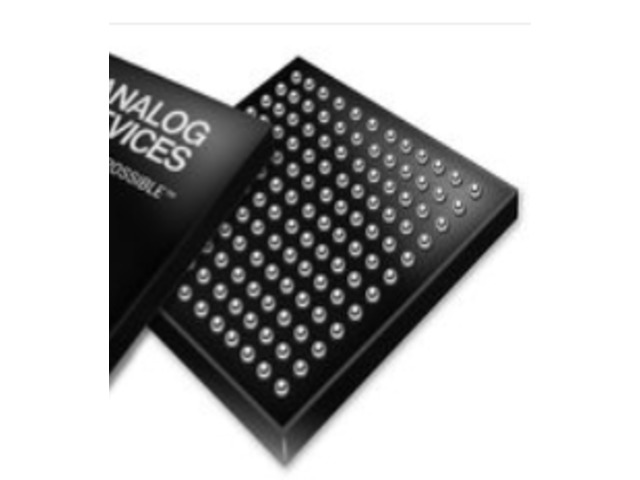

The AD9361 is packaged in a 10 mm × 10 mm, 144-ball chip scale package ball grid array (CSP_BGA).

RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs Band : 70 MHz to 6.0 GHz Supports TDD and FDD operation Tunable channel BW : <200 kHz to 56 MHz Dual receivers : 6 differential or 12 single-ended inputs Superior receiver sensitivity with a noise figure < 2.5 dB RX gain control Real-time monitor and control signals for manual gain Independent automatic gain control
