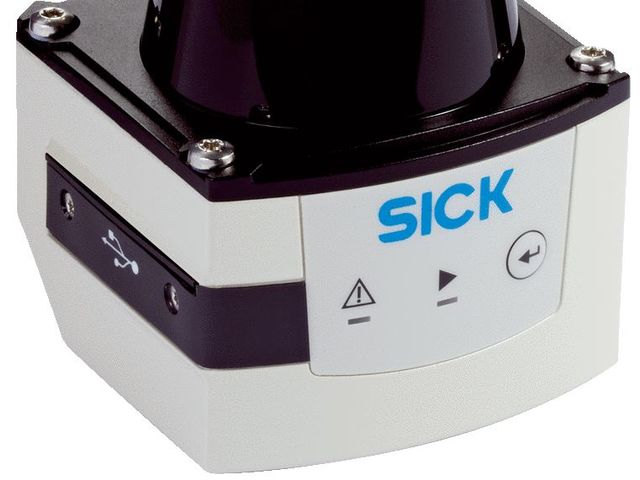

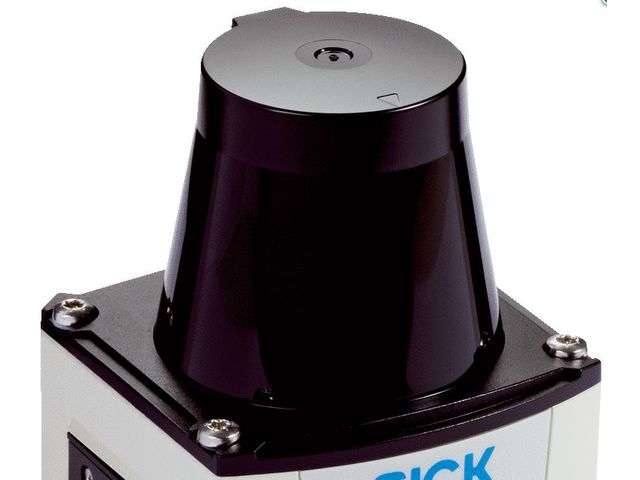

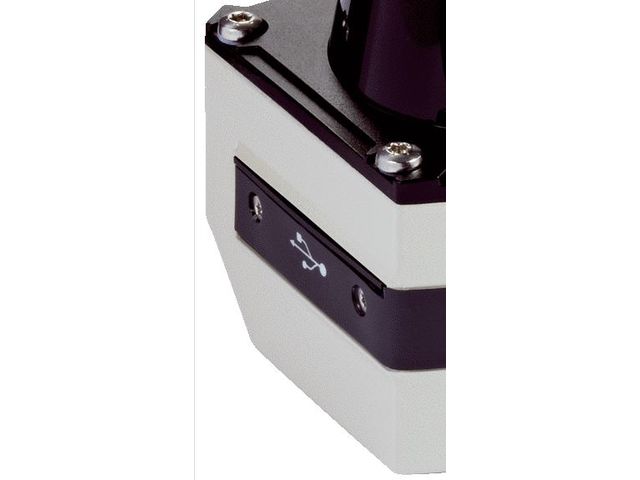

More than just object detection: The TiM5xx 2D LiDAR sensor is a non-contact ranging solution within the TiM series from SICK. Thanks to its HDDM technology, the TiM5xx is able to monitor large areas in indoor and outdoor applications – regardless of the surface or ambient light. Enclosed in a compact, rugged housing, the TiM5xx provides accurate measurement data from the scanned surface, making it possible to determine additional information such as the size and shape of objects. The TiM5xx is flexible for use in a variety of industrial applications as well as in building automation. The integrated Ethernet interface makes for easy implementation and remote maintenance. The TiM5xx is an efficient solution for stationary use as well as for use on automated guided vehicles (AVG) and in other mobile applications.
At a glance
Monitoring area of up to 1,470 m² with just one sensor
High ambient light tolerance due to HDDM technology
Rugged housing with up to an IP 67 enclosure rating
Low power consumption (typ. 4 W)
Compact design with a housing height of just 86 mm maximum
Integrated Ethernet interface
Long sensing range of up to max. 25 m
Industry-standard design and M12 male connector
