Fast laser distance sensor for outdoor applications | optoNCDT ILR1171

“ High measuring rate of 40 kHz Robust industrial design with protection class IP67 Infrared laser class 1 ”

Ask for a quote

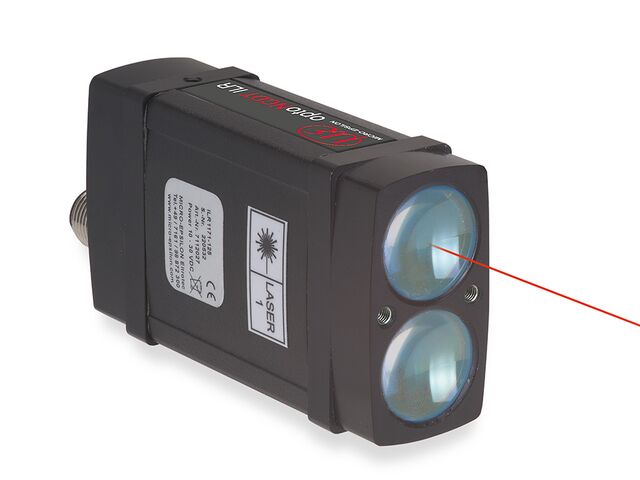

The new optoNCDT ILR1171-125 laser distance sensor is used for distance measurements up to 270 m and particularly impresses in outdoor measurements. Due to the laser time-of-flight principle with infrared light and a measuring rate of up to 40 kHz, high energy pulses are achieved, allowing stable measurements with very good signal quality. In addition, this better compensates for interfering influences such as fog or rain. The high temperature stability allows applications at temperatures from -40 °C to +60 °C. Thanks to its compact dimensions, the sensor can also be integrated into the smallest installation spaces.

Technical features

Measuring range without reflector (m) 125 Measuring range with reflector (m) 270 Linearity ±60 mm Resolution 1 mm High measuring rate of 40 kHz Robust industrial design with protection class IP67 Infrared laser class 1 Easy integration into existing systems Measurement onto static and dynamic targets

Download the complete technical features

Usage scope

Automation Mechanical engineering Mobile machinery
