Plug & Play laser displacement sensor for automation

Laser position sensors

Vote

“ Plug & Play The optoNCDT 1220 is a laser triangulation sensor with compact size for precise displacement, distance and position measurements, offering high accuracy and adjustable measuring rates up to 1 kHz. The integrated Auto Target Compensation (ATC) provides stable distance signal control regardless of target color or brightness. ”

Ask for a quote

Presentation

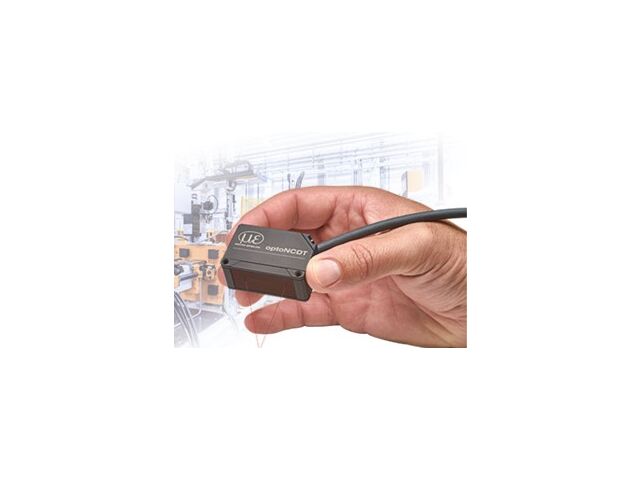

The optoNCDT 1220 from Micro-Epsilon is a laser sensor with an attractive price/performance ratio, high measurement accuracy and ease of use. Suitable for OEM and serial applications in automation technology, this miniature sensor with integrated controller measures displacement, distance and position on a wide range of surfaces.

The Auto Target Compensation (ATC) feature enables reliable control of the distance signal regardless of target color or brightness. Immediately ready to use, the sensor can be easily integrated without having to make any further settings. An intuitive web interface enables set up and configuration, if required.

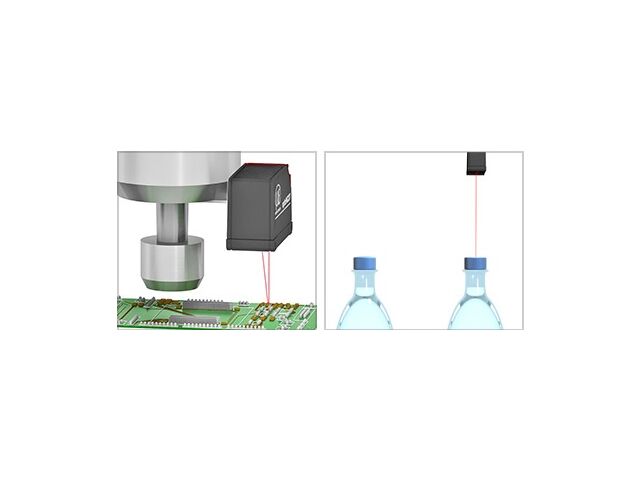

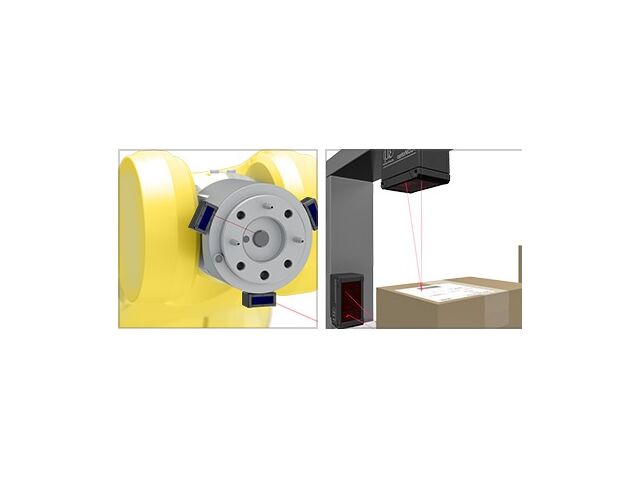

Its compact design with integrated controller allows for the sensor to be integrated simply into plant, equipment and machinery, even where installation space is restricted. Moreover, its excellent price/performance ratio makes the sensor ideally suited to OEM and serial applications. Measured values are output as an analog signal. Primary application areas for the new laser sensor are found in automation technology, e.g., machine building, electronics and 3D printing.

Technical features

Measuring ranges (mm) 10 | 25 | 50 Linearity from 10 µm Repeatability from 3.7 µm Measuring rate 1 kHz Compact size with integrated electronics 3 m integrated sensor cable with open ends Trigger input

Download the complete technical features
