Highly dynamic laser sensor for shiny metallic objects | optoNCDT 2300LL

“ Laser sensor with special lens and oval light spot (small laser line) Integrated controller Advanced Real-Time-Surface-Compensation (A-RTSC) ”

Ask for a quote

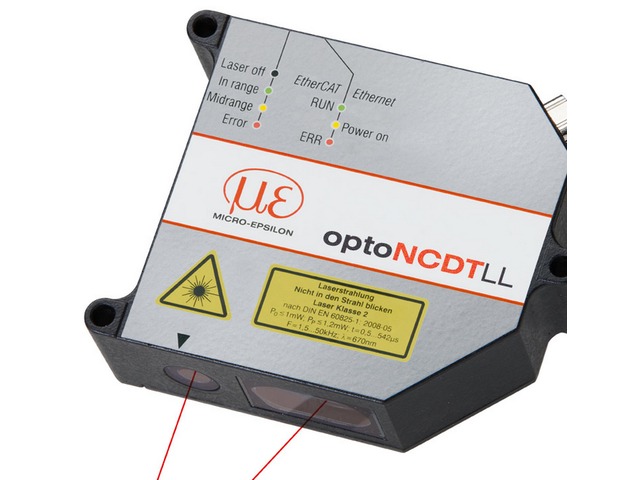

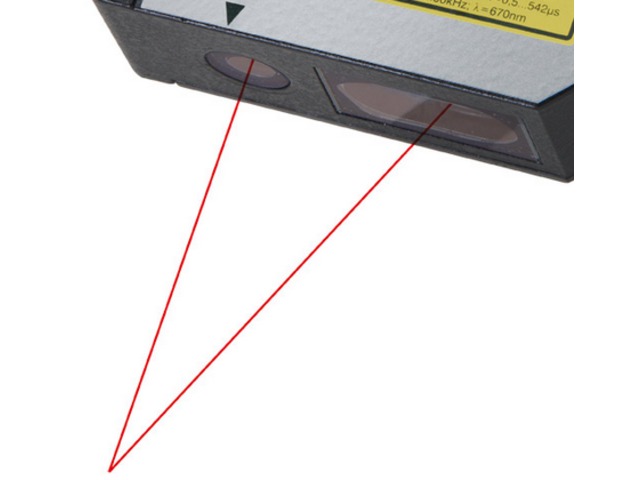

Instead of a common laser point, optoNCDT 2300LL laser sensors project a very small laser line onto the target surface. This laser line makes the optoNCDT 2300LL particularly suitable for precise displacement and distance measurements both on shiny, porous and rough surfaces. The high measuring rate up to 49 kHz enables reliable measurements in high speed processes. Parameter setting of the laser sensor is via a web interface that is addressed via an Ethernet interface. This web interface offers many features for the evaluation and processing of measured values and signals.

Technical features

Laser sensor with special lens and oval light spot (small laser line) Integrated controller Advanced Real-Time-Surface-Compensation (A-RTSC) Ideal for static and dynamic distance measurements on metals, structured surfaces and measuring objects where the laser beam penetrates Measuring ranges (mm): 2 | 10 | 20 | 50 Linearity from 0.6 µm Resolution max. 0.03 µm Adjustable measuring rate up to 49.140 kHz Interfaces: Ethernet, EtherCAT, RS422, Profinet, EtherNet/IP, analog output (via C-Box)

Download the complete technical features
