Precise laser sensor for measuring ranges up to 750 mm | optoNCDT 1910

“ Adjustable measuring rate up to 9.5 kHz Compact design with integrated controller Real-time adaptation to changing surfaces (Advanced Surface Compensation) ”

Ask for a quote

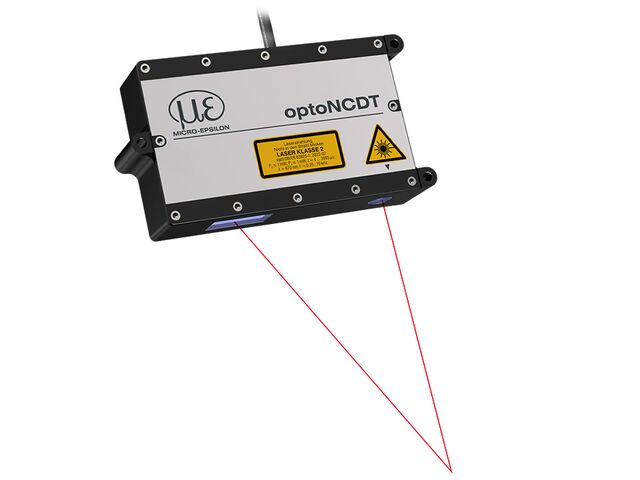

The optoNCDT 1910 laser sensor offers measuring ranges of 500 mm and 750 mm and is therefore designed for applications where a large measuring range or measurement distance is required. A high measuring rate up to 9.5 KHz and the intelligent exposure control ensure fast and reliable results in dynamic industrial applications. The small housing with integrated controller saves space during machine integration and can be operated at ambient temperatures of up to 200 °C with an optionally available cooling housing.

Technical features

Measuring ranges (mm): 500 | 750 Linearity from 350 µm Adjustable measuring rate up to 9.5 kHz Analog and digital outputs Compact design with integrated controller Real-time adaptation to changing surfaces (Advanced Surface Compensation) Predefined and individual presets in the web interface
