The 3200 Series Conveyors with Intralox ARB Technology use innovative conveyance technology for merging, diverting and aligning of product.
Benefits of 3200 Series ARB Conveyors:
-
Flexibility to handle multiple product sizes without the need for changeover
-
Minimizes floor space consumption
-
Increased system reliability
-
Eliminates costly system controls, reducing complexity
-
Encased moving parts provide safer work environments
-
Low maintenance solution
-
Handles product as small as 6″ x 6″
Specifications
-

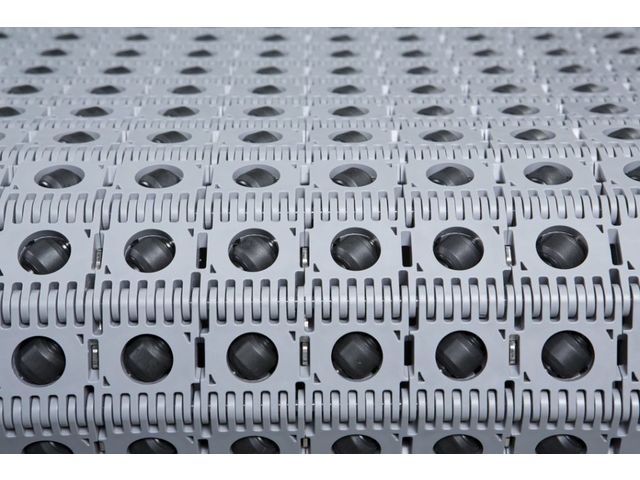

2″ pitch ARB Chain
-
Built on Dorner 3200 Series platform
-
Widths: 8″ (203 mm) to 60″ (1524 mm) in 2″ (51 mm) increments
-
Lengths: Minimum 3 ft (914 mm)
-
Speeds: Up to 150 ft/min (46 m/min)
-
Optional powered transfer
Solutions
-
90 degree transfers maintaining product orientation
-
Aligners / edge justification
-
Case turners
-
Bump turns
-
Touchless low friction merges
-
Rejects
Options & Accessories
-
Standard support stands and guiding options are available
-
All standard 3200 Series mounting packages and gearmotors are available

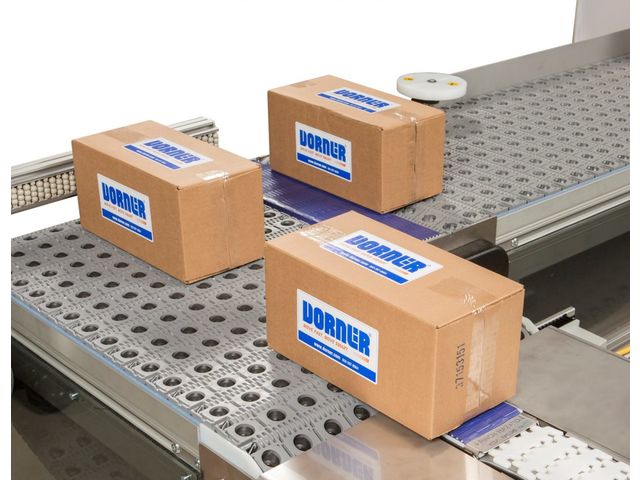

90° Transfers and Lane Merges
-
90° Passive On and 90° Passive Off transfers
-
No adjustment needed for different size products
-
Requires 6″ – 8″ gap upstream
-
90° Passive On requires some product momentum, 90° Passive Off does not
-
Using Passive On, product can merge into a gap on the mainline ARB
-
Uses Series 400 45° Chain and Passive Rollers
Edge Justification and Bump Turns
-
No adjustment needed for different size products
-
Edge justification requires no product gap
-
Bump turn needs 6″ – 8″ gap upstream
-
A fixed or pneumatically controlled protrusion from the side rail is added to help start the turning process
-
Uses Series 400 30° Chain and Activated Rollers.
