Powerful 2D/3D laser scanners | scanCONTROL 30x2

“ Enables inline 3D measurements Absolute precision Compact size ”

Ask for a quote

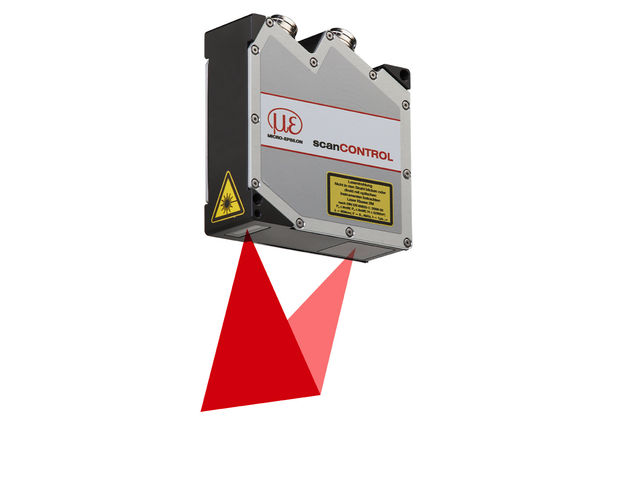

scanCONTROL 30x2 laser scanners are powerful profile sensors in terms of size, accuracy and measuring rate. These laser scanners provide calibrated 2D profile data with up to approx. 8 million points per second. With a maximum profile frequency of 10 kHz, the scanners are designed for precise profile measurements in dynamic processes. The sensor matrix offers a resolution of 1,024 points with a point distance from 24 µm. This means that even small details can be detected reliably.

Large measuring range with 430 and 600 mm

The scanCONTROL 30x2 laser scanners are now also available with a large measuring field of 430 x 390 mm or 600 x 600 mm. This allows large measuring objects to be detected with high accuracy.

Technical features

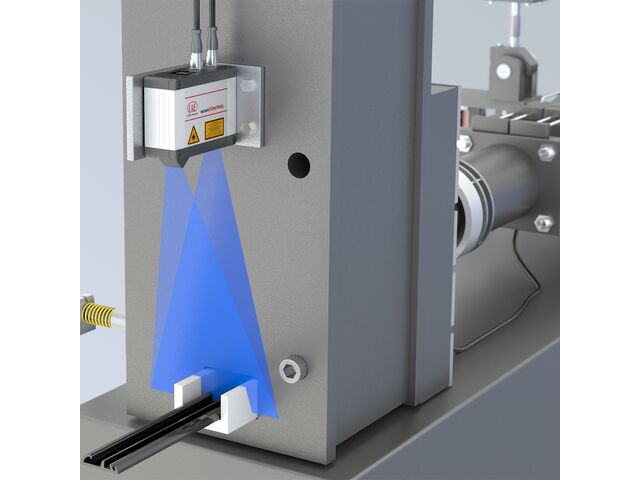

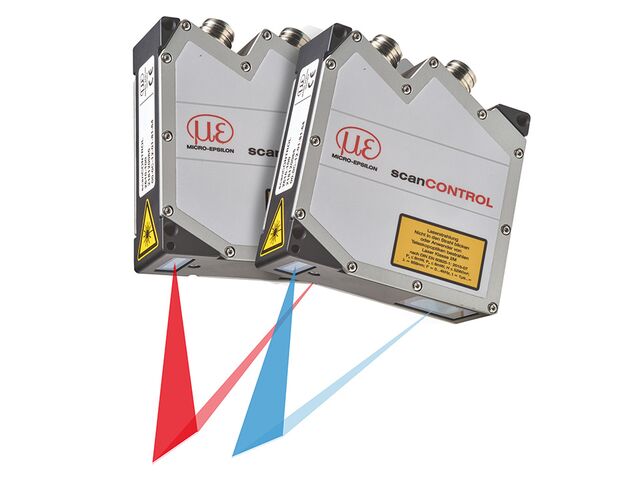

Measuring range z-axis up to 600 mm Measuring range x-axis up to 380 mm Measurement speed up to 10 kHz Measuring rate up to approx. 8,000,000 points/sec Line linearity z-axis from 2 μm Resolution x-axis up to 1,024 points Available also with blue laser Compatible with Cognex VisionPro Fastest SMART evaluation directly in the sensor: up to 10 kHz Optimal connection to PLC due to UDP bundling without data loss

Download the complete technical features
