3D vision camera : SCANNINGRULER - RULER-S2114

Camera for industrial vision

Vote

Ask for a quote

Presentation

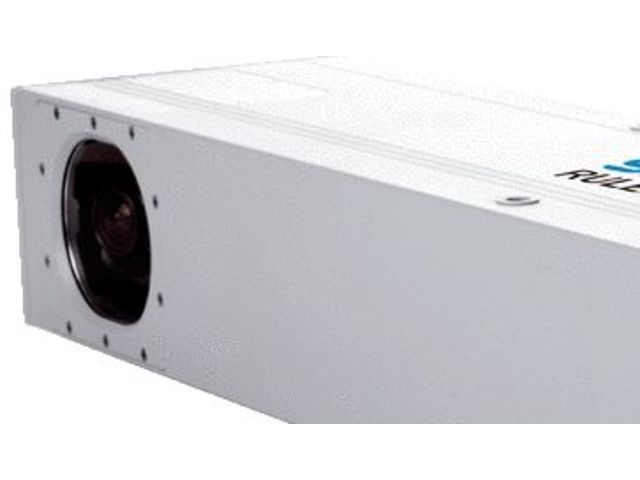

The ScanningRuler is the perfect tool for 3D imaging in robot picking applications. It provides accurate and reliable 3D measurements of stationary objects. The data that is acquired can be used to locate parts in random bin picking applications and to calculate the best robot gripping position. The camera has a built-in laser light source and provides 3D point cloud measurements in millimeters of the entire scene.

These features, in combination with the camera’s immunity to ambient light and its simple configuration, make the ScanningRuler very easy to integrate and use. In addition to 3D images, the ScanningRuler also provides a 2D image of the scene to simplify part identification. The ScanningRuler is connected to a PC with Gigabit Ethernet and has a rugged design that provides reliable operation in harsh industrial environments.

At a glance

• 3D imaging of stationary objects
• Large field of view for scanning U.S. and Euro pallets
• Accurate and reliable acquisition of factory-calibrated 3D data in millimeters
• High immunity to ambient light and contrast variation

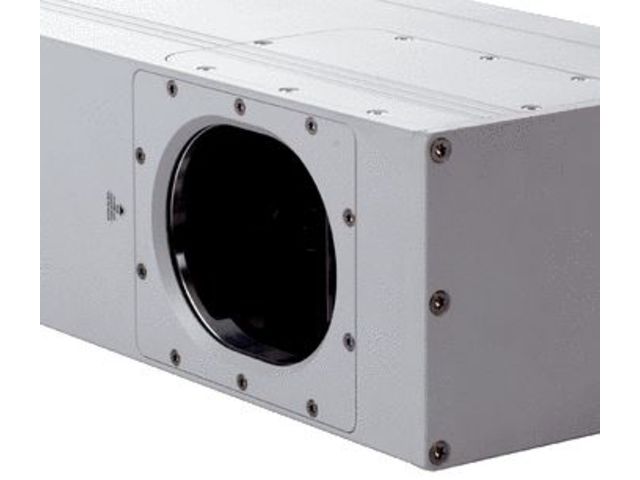

• Rugged housing with built-in laser light source
• Point cloud 3D data with grayscale information

Technical features

Supply voltage : 24 V DC, ± 20 % Enclosure rating : IP65 Housing material : Aluminum Weight : 13.5 kg Dimensions (L x W x H) : 820 mm x 107 mm x 145 mm Ambient operating temperature : 0 °C ... +40 °C

Download the complete technical features
