6 and 10 tons TENSIOMETER - IeCex

Traction force sensor

Vote

Ask for a quote

Presentation

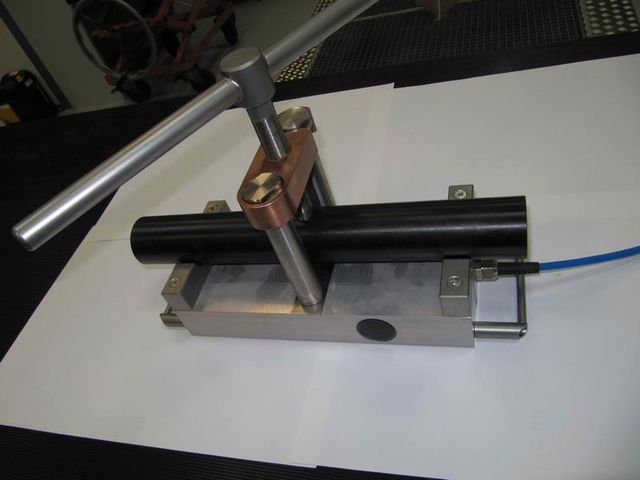

This electronic sensor is designed to measure without dismantling the force applied in a tensioned cable.

Working principle : measurement shear stress by strain gauges.

The deflection of the cable carried through the sensor generates a proportional force to the force applied to the cable.

Stresses generated in the sensor are measured by the strain gauges that generate a 4-20 mA signal.

Aluminum body of sensor is treated to resist corrosion under severe conditions.

This device is intrinsically safe. It can be placed in potentially explosive atmospheres MARKING ATEX Ex II 1G Ex ia IIB or IIC T3Ga 2 scales of standard measures: 6 and 10 Tons

Clamping screw does not require lubrication.

APPLICATIONS

DLT2R sensors are designed for :

- Cable tension measuring (fields of oil extraction)
- Cable tension measurement and stays electricity pylons
- Transmission antennas
- Lifting cranes

Technical features

Metal Gauges - matérial is ALUMINIUM & INOX Range standard mesures : 6 and 10 tons Power suppliy From 15 to 36 volts Output signal 4-20 mA 2 wires Coding Ex ia IIB ou IIC T3Ga II 1 G -20°C ≤ Ta ≤ +80°C Entity Parameters IICT3 under Ui: 24V, Ii: 150mA, Pi: 900mW, Ci: 80nF IIBT3 under Ui: 30V, Ii: 150mA, Pi: 1125mW, Ci: 80nF Calibration accuracy & Initial imbalance zero 0.5% Standard operating temperature -40°C à + 70°C Connection by wire + 24V Brown wire Signal Red wire Mass Green wire Weight 10T = 11,150 kg 6T = 7,350 kg Zero standard drift (0 to 60 ° C) 0.025% Sensitivity drift (0 and 60°C) 0.05%

Download the complete technical features

Usage scope

Cable tension measuring (fields of oil extraction) Cable tension measurement and stays electricity pylons Transmission antennas Lifting cranes

Opinion on the product

Drop your rating on 6 and 10 tons TENSIOMETER - IeCex

Your answer to the rating from -

INTERNET USERS ALSO CONSULTED ON THE CATEGORY TRACTION FORCE SENSOR

Tension load cell - CT1

Ask for a quote

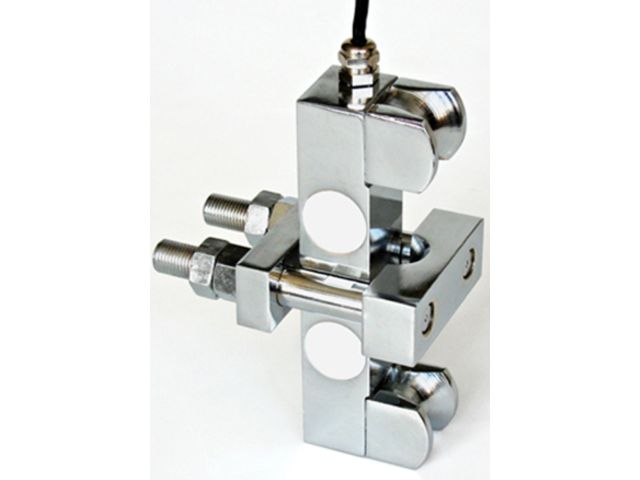

Tension load cell CT2 for measuring the tension of wire rope
