6 to 36 Channel Thermal Paper Data Acquisition Solution Model 8460

Data acquisition systems

Vote

Ask for a quote

Presentation

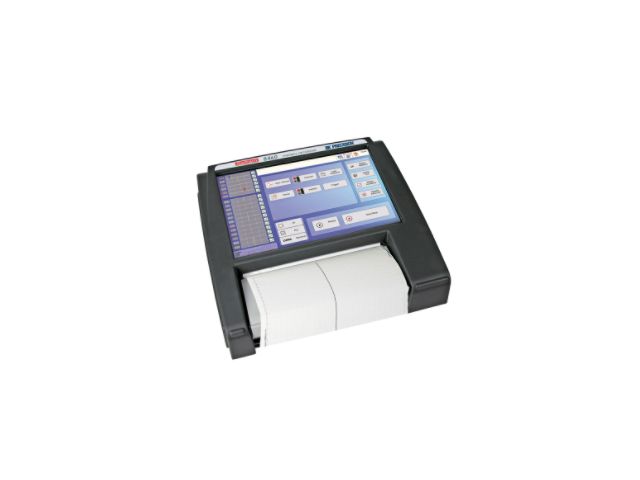

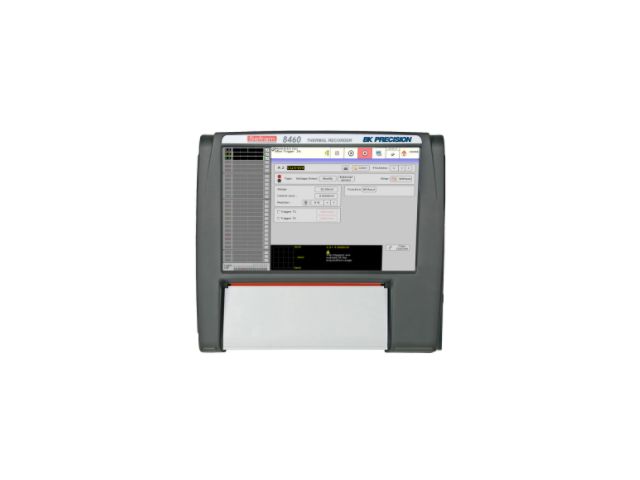

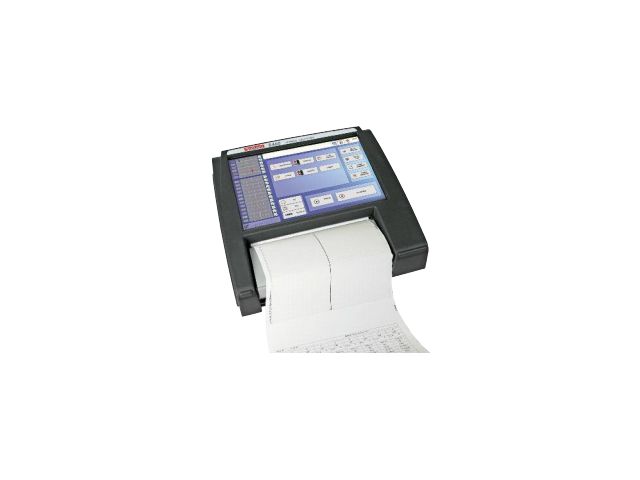

The Sefram 8460 is a High-Speed Thermal Paper Data Acquisition Solution with 270 mm paper that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V; 4-20 mA), etc..

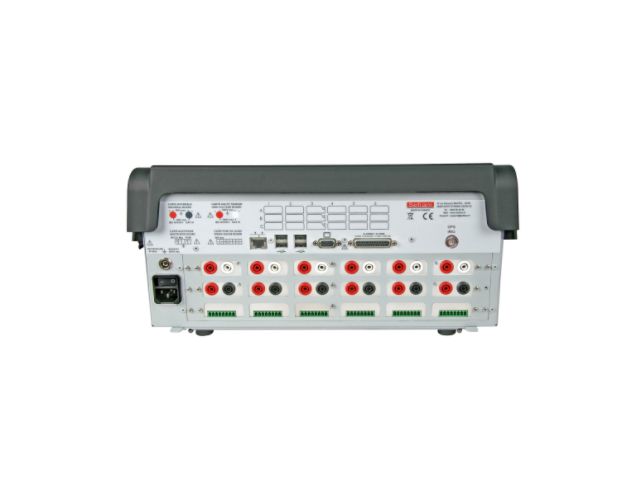

You can set up your own channel configuration from the 4 input boards available: 6ch Universal Board, 6ch Universal High Voltage board, 6ch Strain Gauge board and 12ch Multiplexed boards.

With suitable channel configuration you can record from 6 up to 36 channels and 16 logical inputs. Long term measurements with a sampling rate of 1MHz are possible by taking full advantage of the 500GB internal hard disk memory.

With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz).

This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can analysed on license-free software from Sefram.

Technical features

TFT panoramic LCD touch screen (15"4) 6 to 36 analogue channels Up to 3 measurement boards 16 logical channels 270mm thermal paper printer 128 Mword memory, with segments Internal hard disk : 500 Gb Power Analysis function (50Hz, 400Hz and 1kHz) - single and dual networks Interfaces : 4 x USB, Ethernet, VGA Various measurement functions
