Flexible multiparameter DIN-rail and cabinet device for all industries.

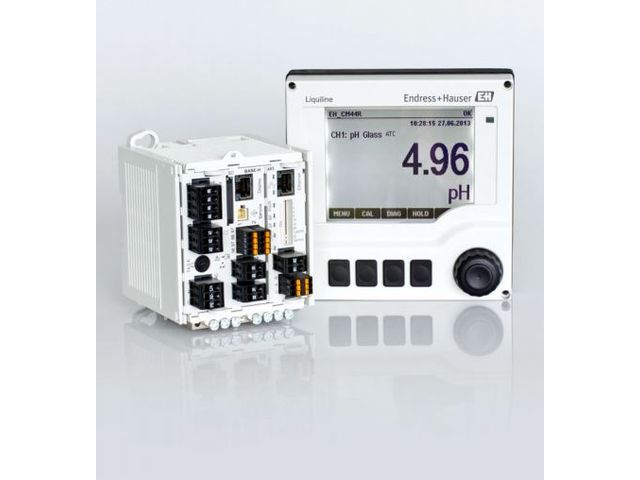

Liquiline CM448R is a digital multiparameter transmitter for process monitoring and control in all applications - even where mounting space is limited. It saves you time and money through fast and simple system integration, installation, and operation.
The 8-channel device can be easily adapted to your process, accommodating 1 to 8 sensors as desired. Liquiline CM448R provides you with all the benefits of a best-in-class transmitter platform from clever simplicity to maximum process safety.
• Saves space, saves money: Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.

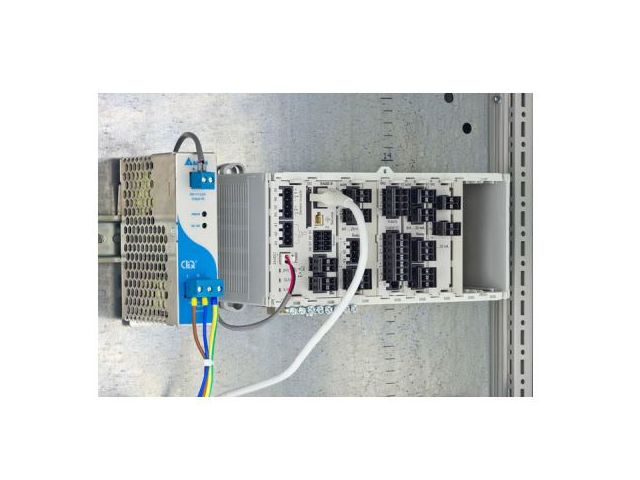

• High-speed installation: No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.
• Simple and safe commissioning: Convenient setup multiplication to other devices with SD-Card saves time and minimizes effort.
• Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.
• Process control and safety: Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.
Liquiline CM448R features all common communication protocols and interfaces, such as:
• 0/4...20 mA
• PROFIBUS DP
• Modbus TCP / Modbus RS485
Measuring Principle : UV photometricApplication : Modular 4 wire controller Multichannel:1-8 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 8 sensors connectable in any combination FunctCharacteristic : Robust plastic housing All non-ex applicationsDesign : 8x Memosens input 2...8x current output alarmrelay 2x relay SD card for software update and copy & paste of setupMaterial : PolycarbonateDimension : 220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)Process temperature : -20...55°C / 0...130°FInput : 1...8x Memosens digital input 2x 0/4..20mA Input optional 2..4x Digital input optionalOutput : 2...8x 0/4...20 mA current outputs alarmrelay 4x relay ProfibusDP Modbus RS485 Modbus TCP Ethernet
Food and beverages Life sciences Power & energy Water and wastewater Chemicals
