Abel flash point tester

Laboratory instruments

“ - Electric igniter : a patented design and ceramic coatings deliver a 10x longer lifetime than that of competitor solutions, eliminating downtime due to igniter failures - Multi-function head : automatically connects with temperature and flash point detection sensors without the need for cables or plugs - Easy calibration and adjustment of sensors and stirrer on-site to guarantee reliable results - A whole portfolio of test equipment, including test cups made from brass or stainless steel, for more flexibility when measuring valuable or corrosive samples - Simple and intuitive test setup so you can get started right away - Smart user interface is operated via a 7" touchscreen - customizable user interface based on your needs - Guided workflows take you through all necessary steps to obtain standard-compliant flash point testing results, supported by status light - Disassembly of wetted parts within seconds - Quick, hassle-free cleaning prevents false results from sample carry-over - Unparalleled two-in-one instrument combination for top flexibility and the widest sample range on the market - Connection of instrument to an external chiller to measure flash point at very low temperatures - Internal cooling system : flash points between 10°C and 130°C without external chiller - Automatic integration of your test results into your working environment - With AP Connect, store tens of thousands of measurements in a single digital space, available at a snap, and accessible from any network computer, anytime ”

Ask for a quote

Presentation

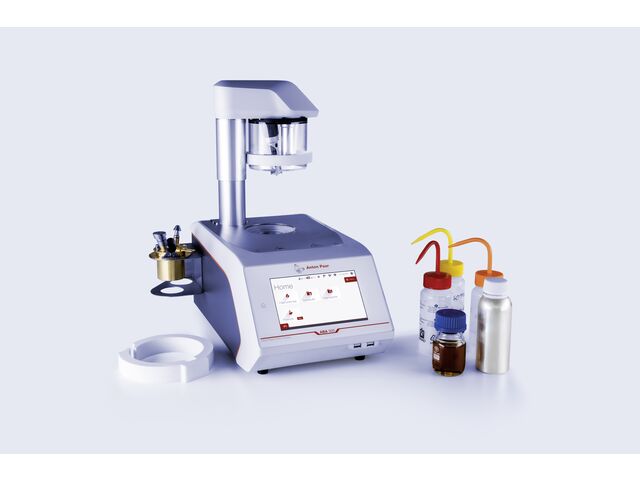

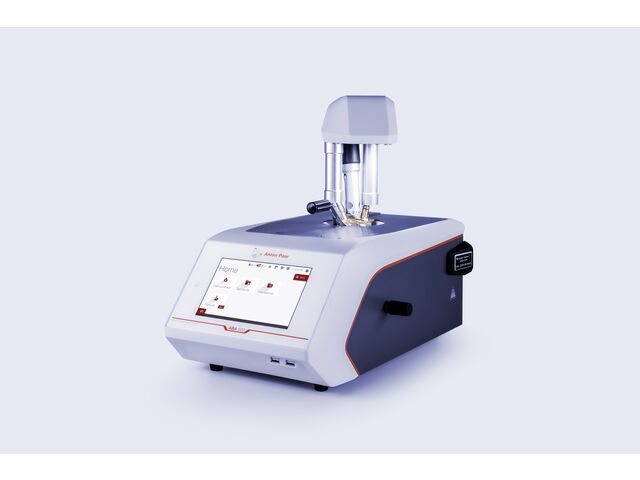

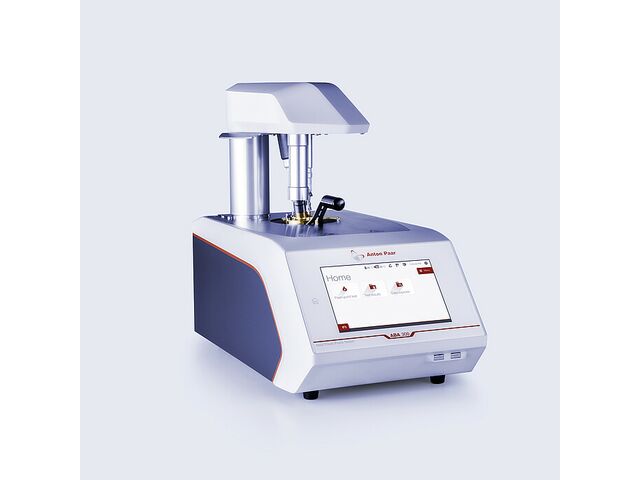

Anton Paar's Abel closed-cup flash point tester series - ABA 500 and ABA 300 - offers next-generation flash point testing. Easily determine the flash point according to ISO 13736, ISO 1516, ISO 1523, and more. Perform automatic, high-precision flash point testing of samples like jet fuels, solvents, flavors and fragrances, adn chemicals. Innovative cooling options permit flash point testing across a temperature range from -35°C to +130°C. Both Abel flash point testers offer excellent heating control and a full feature set for accurate flash point results. The clever instrument design maximizes productivity and saves costs as the electric igniter has the longest lifetime on the market.

ABA 300 :

Flash point with a range from 10°C to 110°C
Full compliance with ISO 13736, ISO 1516, ISO 1523, and more
Patented electric igniter with ceramic coating, for 10x longer lifetime than that of competitor solutions
Budget-friendly instrument with comprehensive feature set

ABA 500 :

Temperature range from -35°C to +130°C
Full compliance with ISO 13736, ISO 1516, ISO 1523, and more
Patented electric igniter with ceramic coating, for 10x longer lifetime than that of competitor solutions
Extensive feature set for comprehensive functionality and top safety

Technical features

Test methods : EN ISO 13736, IP 170 Equilibrium procedures: EN ISO 1523, IP 492, EN 924 | EN ISO 1516, IP 491 >1,000 user-defined test programs Application range (flash point temperature) : Air-cooled 10 °C to 130 °C Liquid-cooled -30 °C to +130 °C Sample temperature range : Air-cooled -7 °C to 130 °C Liquid-cooled -35 °C to +130 °C Ignition type : Electric (encapsulated hot wire) Stirring speed : According to standard or user-defined Cooling : Fan-supported Peltier cooling technology Barometric pressure correction : Flash point is automatically corrected to barometric pressure Flash detection : Automatic detection by thermocouple Sample temperature : Automatic by Pt100 Calibration : Calibration of sample and block temperature, stirrer speed, and internal barometer

Download the complete technical features

Usage scope

Petrochemicals Chemicals Solvents
