ABES Bollard-Ashtray 525

Street post

Vote

Ask for a quote

Presentation

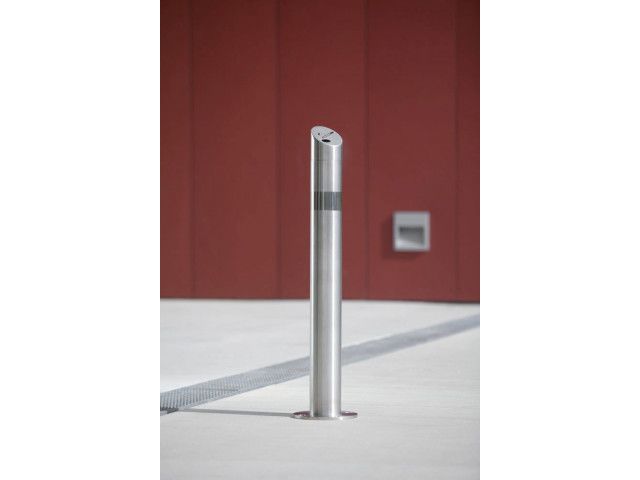

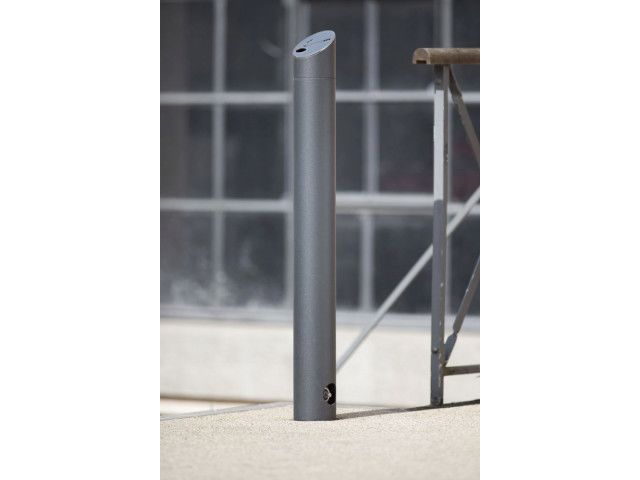

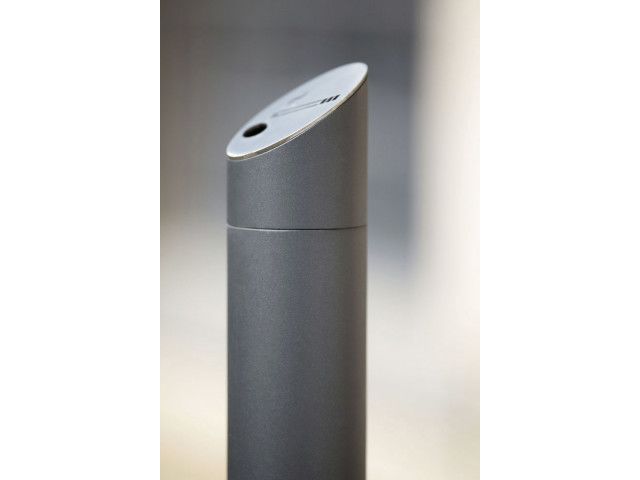

ABES Bollard-Ashtray 525 is fully cylindrical bollard ashtray with a sloping slot area. Labelling in the form of an outlined, laser-printed cigarette symbol. Mounting Removable with 3p-Technology. Alternative: concrete embedment or screw-on. Finish – Powder coating in standard RAL colours or DB 703. – May be unlocked for emptying using a triangular key. – Stainless steel 1.4301 pickled and smoothed, electropolished to customer’s requirement (high-gloss) – surcharge. Delivery for ABES Bollard-Ashtray 525 – Made of stainless steel 1.4301. pickled and smoothed or steel ST37, powder coated in RAL or DB 703 Glimmer grey. – Measurements (H above the ground x Ø in mm): 1000 x 108 – included triangular lock and key The basic 3p-Technology package contains: – Ground shell 300 mm (000.001), cast iron, galvanised – Junction piece (000.008), cast iron, galvanised – clamping bolt set, hex head (N1+N2+hex-screw), stainless steel 1.4301 (000.004)

Technical features

Type: for public spaces, for schools, for public buildings, kindergarten, for parking lots Material: steel, stainless steel Features: fixed mounted, removable with 3p-Technology, with flange plate (screw-on)

Download the complete technical features

Opinion on the product
