Absolute and gauge pressure | Cerabar PMP55 Endress+Hauser France

Absolute and gauge pressure | Cerabar PMP55

Piezoresistive pressure sensor

Vote

“ Easy menu-guided commissioning via on-site display ”
Go to the supplier’s website Receive Documentation Ask for a quote

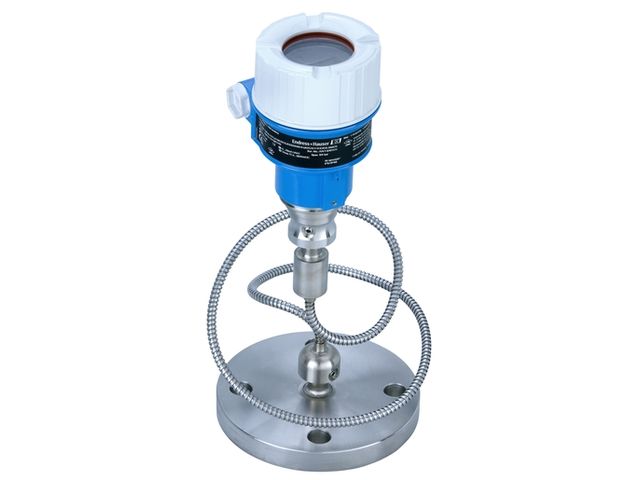

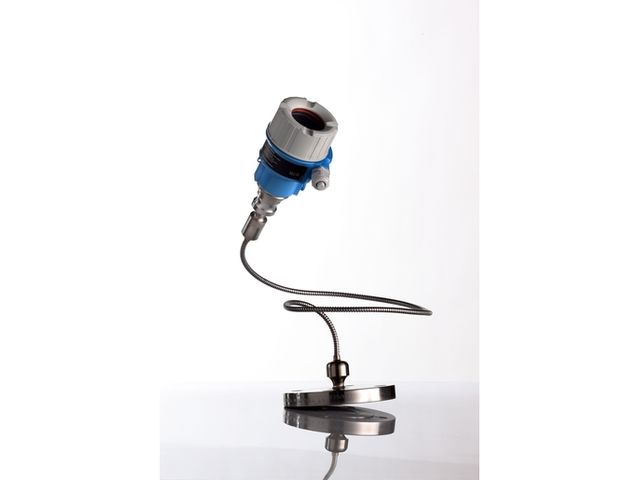

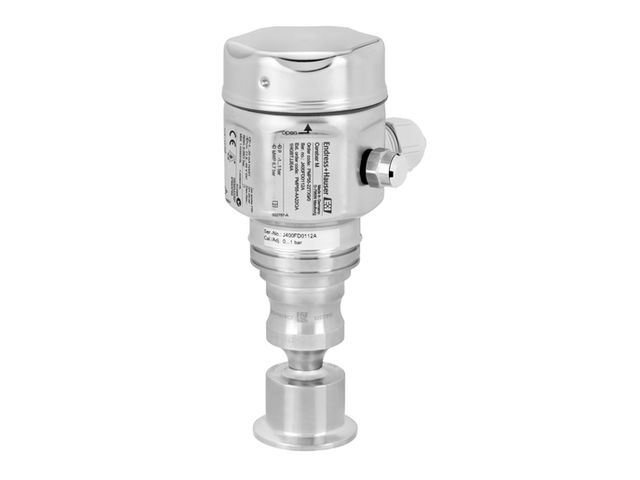

Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids.

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Smart and reliable pressure transmitter, with piezoresistive measuring cell and metal welded process isolating diaphragm and diaphragm seal Accuracy Standard 0.15% Platinum 0.075% Process temperature -70°C…400°C (-94°F…752°F) Pressure measuring range 1 bar...400 bar (15 psi...6000 psi) Process pressure absolute / max. overpressure limit 600 bar (9000 psi) Main wetted parts 316L AlloyC Montel Tantal Rhodium
Download the complete technical features
