Absolute and gauge pressure | Cerabar PMP71 Endress+Hauser France

Absolute and gauge pressure | Cerabar PMP71

Piezoresistive pressure sensor

Vote

“ Best accuracy, reproducibility and long-term stability ”
Go to the supplier’s website Receive Documentation Ask for a quote

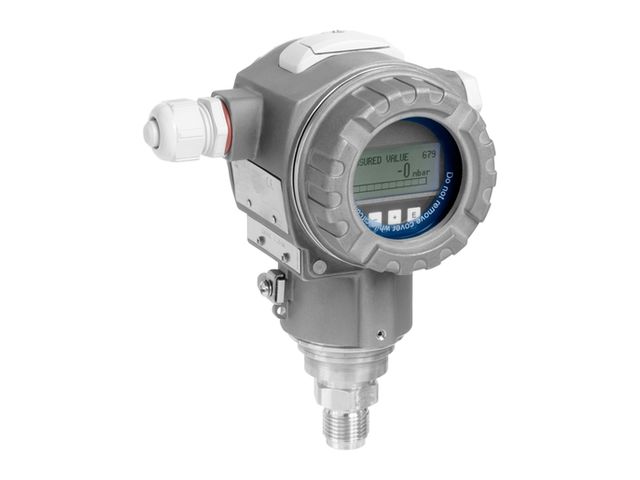

Digital pressure transmitter with welded metal sensor for measurement in gases, steam or liquids.

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.

Digital transmitter with piezoresistive sensor and welded metallic membrane Modular transmitter Enhanced safety via self diagnostic functionsSecondary process barrier Accuracy Standard: 0.05% Platinum: up to 0.025% Process temperature -40°C...125°C (-40°F...257°F) Pressure measuring range 100mbar...700bar (1.5psi...10.500psi) Main wetted parts Alloy C276 316L Rhodium Material process membrane 316L, AlloyC, Rhodium> Gold
Download the complete technical features
