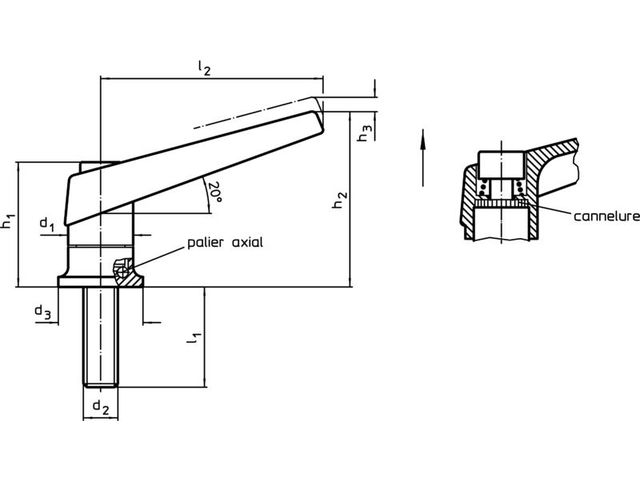

Adjustable Clamping Levers with axial bearing, with screw - EH 24420 HALDER FRANCE SAS

Adjustable Clamping Levers with axial bearing, with screw - EH 24420

Assembly systems and components

Vote

Ask for a quote Receive Documentation Contact the supplier

Advantages of axial bearing:

  • Double clamping force with same lever size, by reducing the surface friction.
  • Protection of workpiece by a fixed locating surface.
  • Little setting due to higher pre-clamping force of bolt, e.g. thread.
Material:

Lever

  • Zinc die-cast, plastic coated, orange similar to RAL 2004, matt structure
  • Zinc die-cast, plastic coated, black, similar to RAL 9005, matt structure

Inner parts

  • Steel, nitrided, blackened

Screw

  • Steel, nitrided, blackened

Download the complete technical features
