HALDER FRANCE SAS

Retaining Cables - EH 22400 HALDER FRANCE SAS

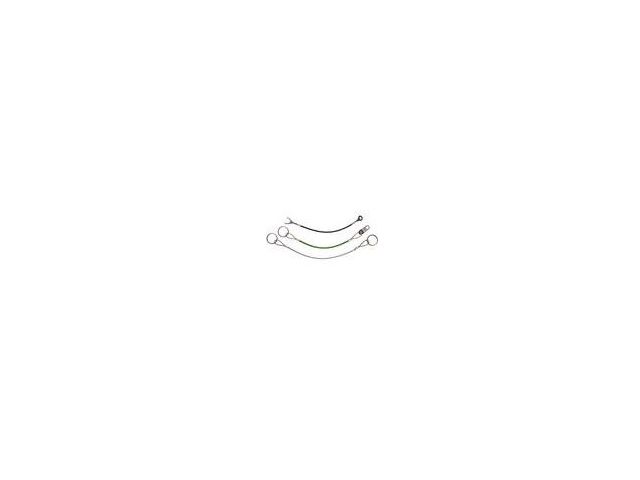

Retaining Cables - EH 22400

Assembly systems and components

Vote

Ask for a quote Receive Documentation Contact the supplier

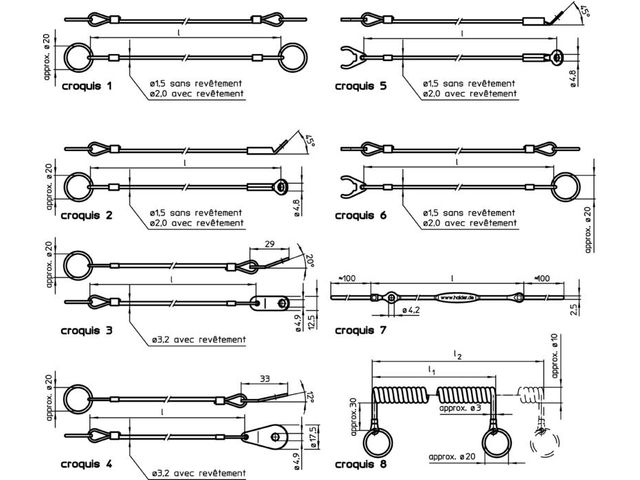

These retaining cables secure the single-acting ball lock pin EH 22340., EH 22350., EH 22370. and EH 22380., as well as clamping pin EH 22360., and socket pin EH 22400. against possible loss.

Material

Attaching ring

  • Stainless steel

Ring

  • Stainless steel
  • Brass, tin-plated

Retaining cable

  • Stainless steel
  • Thermoplastic PA 6, grey
  • Thermoplastic PUR, black, with filling thread

Coating retaining cable

  • without coating
  • Thermoplastic PA 6 coated, black
  • Thermoplastic PA 6 coated, clear
  • Thermoplastic PVC coated, green (transparent)
  • Thermoplastic PA 6, grey
  • Thermoplastic PUR, black

Download the complete technical features
