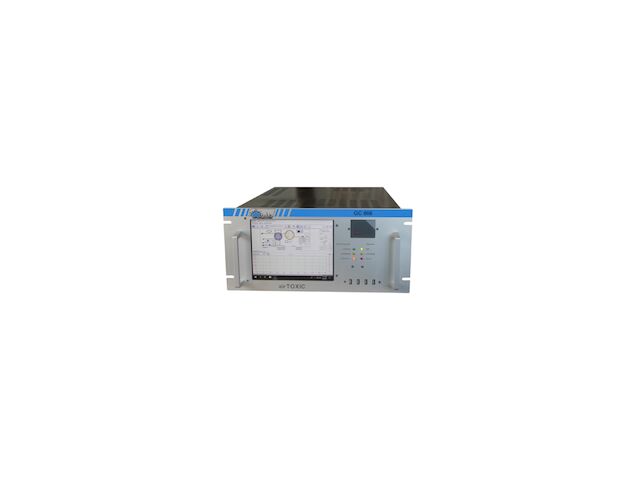

The airTOXIC by Chromatotec is a GC-PID, MCERTS-certified analyzer for the continuous monitoring of BTEX in air, water, and soil. It uses a six-way valve, an absorbent trap, and a metallic capillary column. The instrument is equipped with a benzene permeation bench for in-situ automatic calibrations and can be used for emissions monitoring with a dilution system.
The airTOXIC gas analyzer features a rotary valve with a single absorbent trap and a 30-meter, 0.28 mm metallic identification column. It achieves a minimum detection level as low as 10 ppt for benzene or 1,3-butadiene (A76022) in ambient air. Its main characteristics include miniaturization, sensitivity, mobility, and flexibility. All components, from sampling to data storage, are integrated into a 5U 19″ rack.
Technical Specifications
-
Analyzed gases: BTEX (benzene, toluene, ethylbenzene, xylenes: ortho, meta, para, cyclohexane, styrene, 1,3-butadiene)
-
Measurement ranges:
-
3.25 to 3250 μg/m³ = 0-1000 ppb
-
0.32 to 325 μg/m³ = 0-100 ppb
-
0.032 to 32.5 μg/m³ = 0-10 ppb
-
Sensitivity: ≤ 0.01 ppb = 0.0325 μg/m³
-
Accuracy:
-
< 0.3% over 48 hours (retention time)
-
< 2% over 48 hours at 1 ppb (concentration)
-
Operating temperature: 10 to 35 °C in a climate-controlled room
-
Cycle time: 15, 20, or 30 minutes
-
Gas supply:
-
Nitrogen: 4 ml/min (input 3 bar; swagelok 1/8 inch)
-
Air or nitrogen for CALIB: 50 ml/min continuous and 180 ml/min during CALIB mode
-
Sample volume: 20 to 400 ml or more (programmable)
-
Data recording: Yes
-
Display: 10″ color LCD screen
-
Software: Integrated Windows 7
-
Communication: 4-20 mA output, 4 USB ports, 2 RS-232 ports, MODBUS RTU / JBUS
-
Power supply: 230V / 50Hz or 115V / 60Hz
-
Dimensions: 222 x 482 x 600 mm
-
Weight: 22 kg
This instrument is perfectly suited for accurate, reliable, and continuous BTEX monitoring in various environments.
