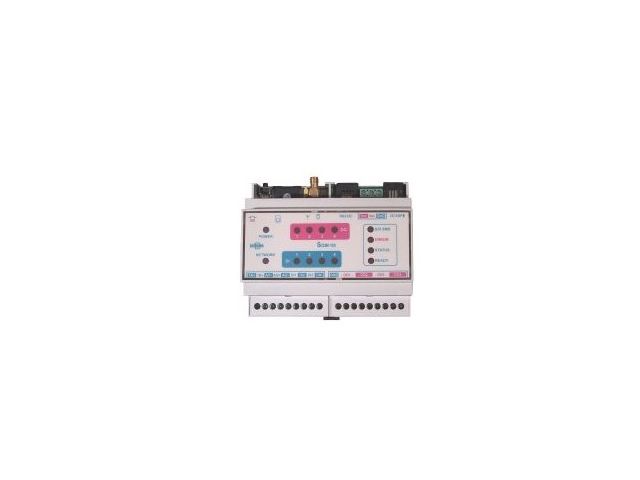

SCOM-100 is a low cost, DIN rail mounted controller unit for alarm annunciation and remote control using SMS. The main unit incorporates a Quad Band (850/900/1800/1900MHz) GSM modem, 2 analog inputs, 4 digital inputs, 4 power relay outputs (250V/10A) and a serial RS-232 port. Front panel LED indicators monitor control and digital I/O states.
Simple setup and operation
All setup and control is done using your mobile phone. Simply insert a SIM card with your name and phone number in the phone list and press the start up button during power up! Simple ASCII configuration commands are used for both, unit setup and control.
Several commands can be packed in one SMS. The RS-232 interface can be used to alternatively setup and test the unit using the bundled, user friendly configuration software on a Windows PC.
The rich command set features commands for configuring input alarm parameters, setup of irrigation and time scheduled programs, control functions like ON/OFF and PID control, defining user groups and controlling system outputs with time related parameters.
