Alignment system of steam and gas turbines : CENTRALIGN Ultra EXPERT

Alignment

Vote

Ask for a quote

Presentation

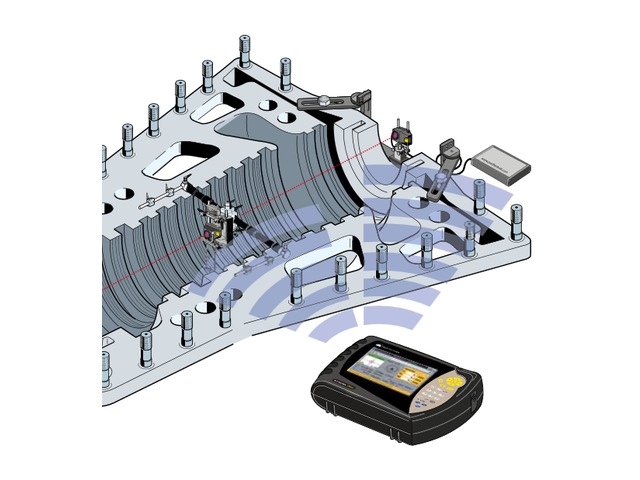

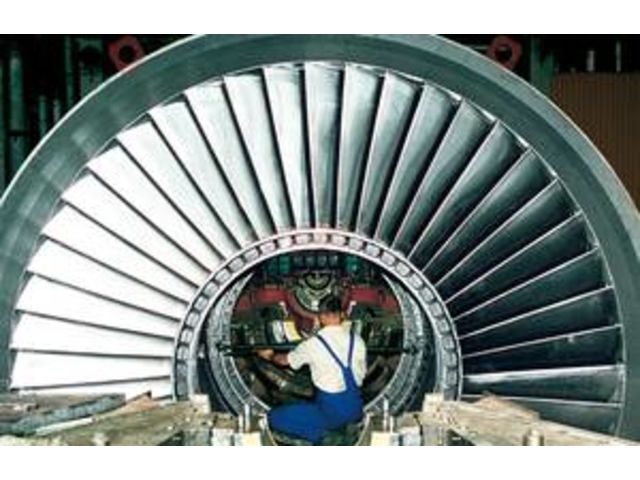

CENTRALIGN Ultra Expert has been specifically developed for the alignment of steam and gas turbines. The system is designed for the precise alignment of internal elements of rotating machines such as bearing rings, diaphragms, nozzles, inner shells and turbine casings.

The additional unique control sensor system monitors the laser drift, which automatically ensures the measurement accuracy over long distances and long measurement periods, when the laser stability is more subject to impacts by variations of air density and temperature. In combination with the highly precise and stable laser, the system delivers highest accuracy.

CENTRALIGN Ultra Expert saves extensive amounts of time and the effort needed in traditional methods to position the piano wire or bar/measurement shaft (arbor) into place and reposition it after each adjustment. The system calculates the center of each individual element and displays their locations, relative to each other on the screen. The desired centerline may be adjusted to determine the best-fit line and minimize corrections. Vertical and horizontal values or left/bottom/right values can be preset.

Technical features

Control sensor for automated compensation of potential laser drift Measurement methods for true bore center and specific applications Exclusive large bore brackets for tops-on and tops-off applications Simple and quick measurement process up to 40 m (130’) Powerful built-in splice function maximizes measurement flexibility and extends measurement range Takes care of reference line position, rotor sag and thermal growths Live Move function to monitor the alignment corrections in real time.
