Anton Paar Bioindenter: UNHT³ Bio

Laboratory instruments

Find out more

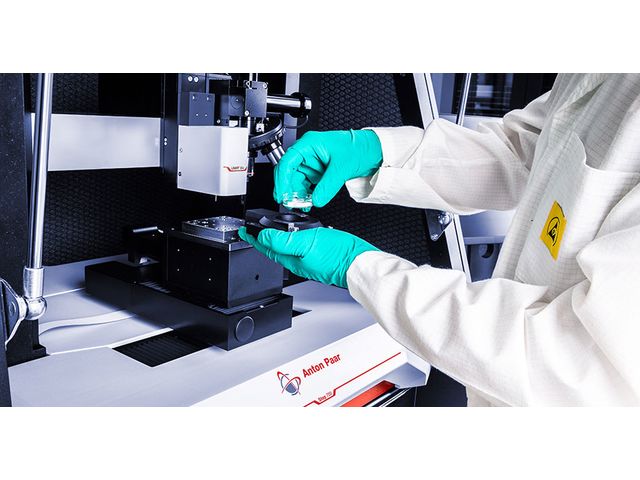

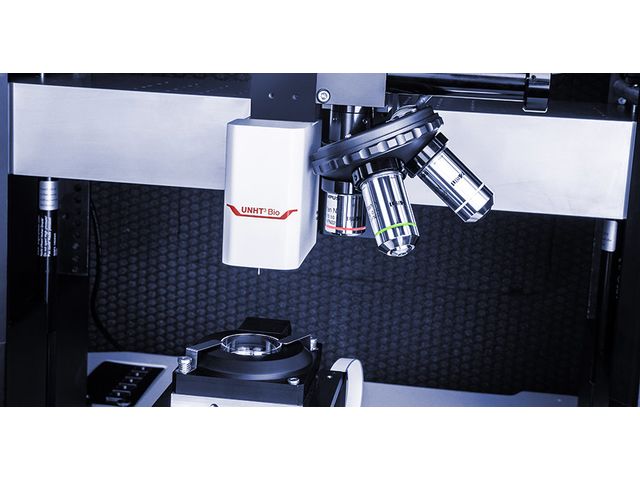

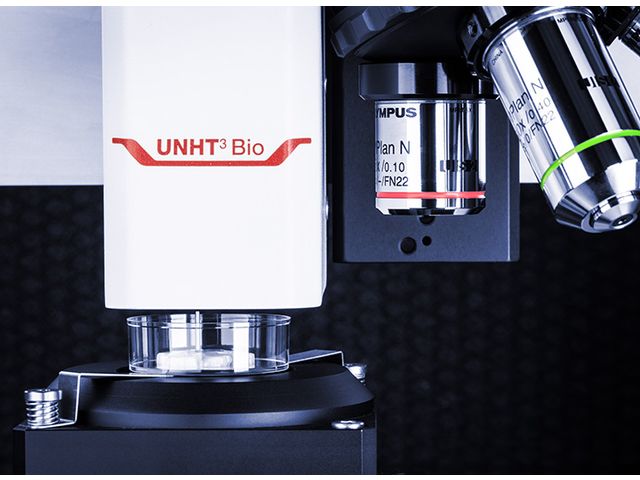

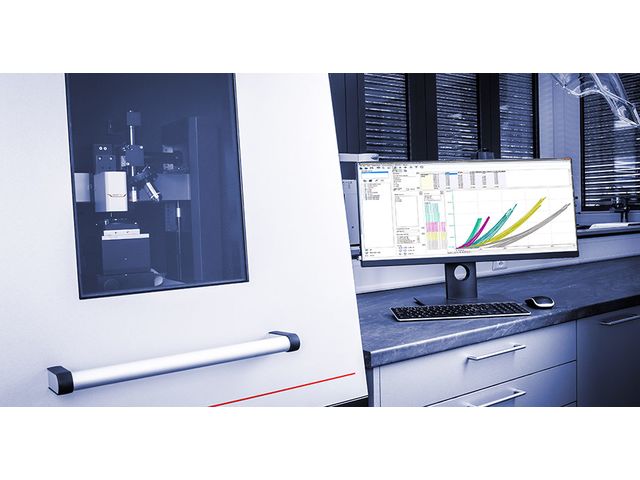

“ The indentation procedure: Optimized for your measurements The Anton Paar Bioindenter offers a wide choice of indentation procedures including standard, advanced and cyclic indentation modes. Different matrices like simple matrix, advanced matrix and visual matrix for statistical evaluation and customized indentations are possible. User-defined indentation profiles can be established. The convenient contact point determination makes the Bioindenter an instrument you will like to work with. The measurement system: A class of its own The measurement unit of the instrument itself is designed for high-precision nanoindentation in biology and medicine. The integrated true force sensor is able to apply a maximum load of up to 20 mN. The displacement sensor allows a large travel range. Furthermore, the Anton Paar Bioindenter provides good thermal stability to study creep and flow properties. The provided microscope comes with long working distance objectives. The motorized precision table enables movements in the X,Y and Z directions for the ideal positioning of the sample. Software: The key to your results With the powerful but easy to handle software, you have full control of the indentation procedures (load, displacement, etc.). The results are automatically analyzed and a statistical module for fast overview of your the data and results is also provided. User-defined ASCII exports can be made and multiple users can work with the instruments with controlled access rights. The elastic modulus can also be calculated from the loading part of the indentation curve using the Hertz’s model, which is more appropriate for biological materials than the commonly used Oliver & Pharr approach. Different kinds of indenters: The choice is yours The Anton Paar Bioindenter works with different kinds of indenters depending on your materials and needs. There are spherical indenters with radii from 0.01 mm up to 0.5 mm and larger, flat-punch (flat-ended cylinder) indenters, Berkovich indenters, Vickers indenters, cube-corner indenters, and also custom-made indenters to suit even the most demanding applications (large radii spheres, cylinders, etc.). ”
