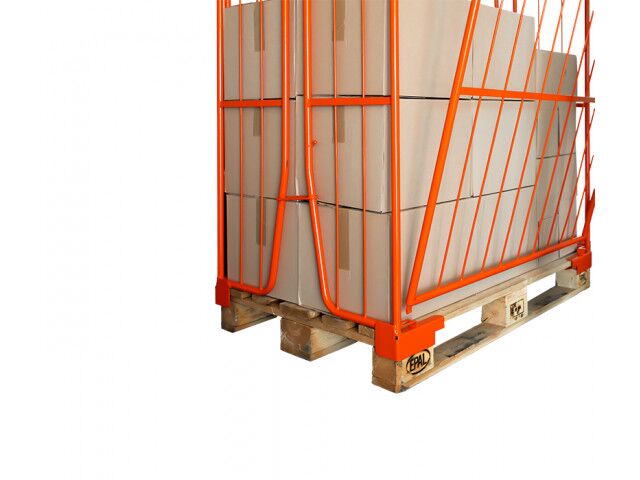

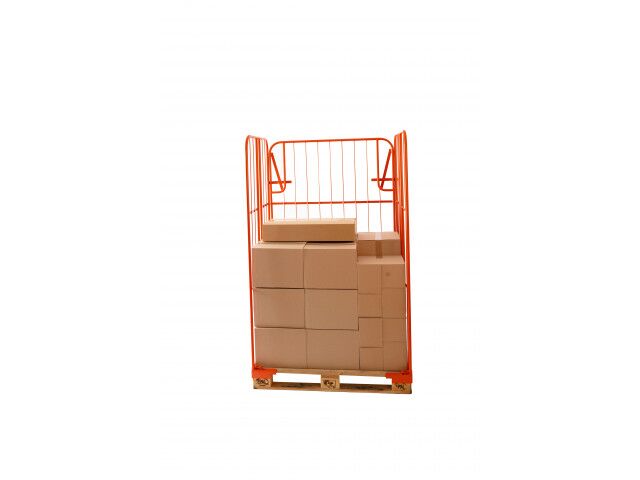

Attachable frame as accessory for Euro pallet type RB 10

“ Space-saving storage in empty containers (7 sets can be stacked upright on a EURO pallet) / Easy loading and unloading thanks to removable front and rear panels / Compatible with the 1,200 EURO pallet ”

Ask for a quote

- Desired order quantity: 300 pieces

- Suitable for EURO pallete 1.200 mm x 800 mm
- Tool-free attachment and removal in no time at all
- No need for additional film or other transport protection
- Easy loading and unloading thanks to removable front and rear panels
- Safe transport of particularly tall goods
- Smooth use on conveyor systems
- Space-saving storage in empties (7 sets can be compacted vertically on a EURO pallet)

RB-10 as 4-sided
- External dimensions (incl. pallet) in mm: 1,205 x 805 x 1,947
- Internal dimensions (usable area) in mm: 1,157 x 753 x 1,800
- Payload in kg: 1,000
- Surface finish: RAL 7032

RB-10 as 3-sided
- External dimensions (incl. pallet) in mm: 1,205 x 805 x 1,947
- Internal dimensions (usable area) in mm: 1,157 x 776 x 1,800
- Payload in kg: 1,000
- Surface finish: RAL 7032

Technical features

Adaptability: Compatible with the EURO pallet (1,200 mm x 800 mm) Assembly: Tool-free assembly and disassembly Cost savings: No additional plastic wrap or other transport protection required Easy handling: Loading and unloading made easy thanks to removable side walls Safety: Safe transport of particularly tall goods Application: Works on conveyor belts Storage: Compact storage of 7 sets standing upright on a EURO pallet Payload: 1,000 kg
