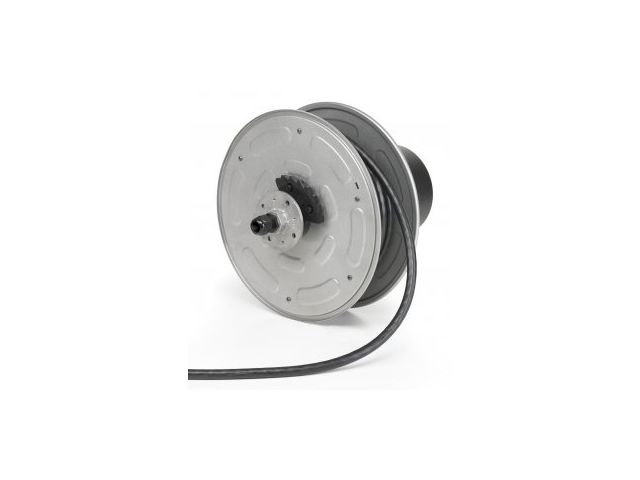

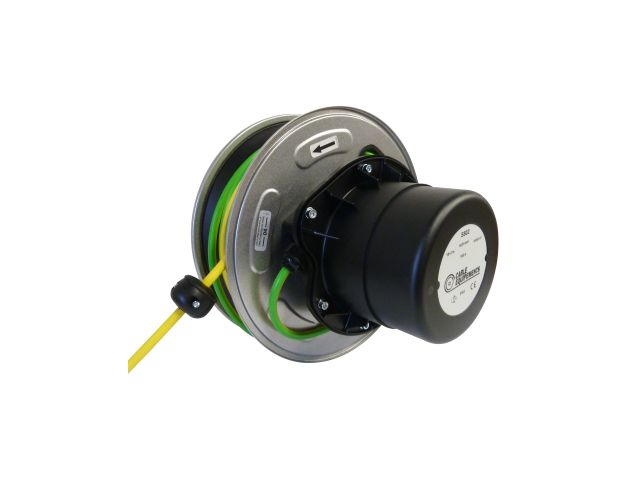

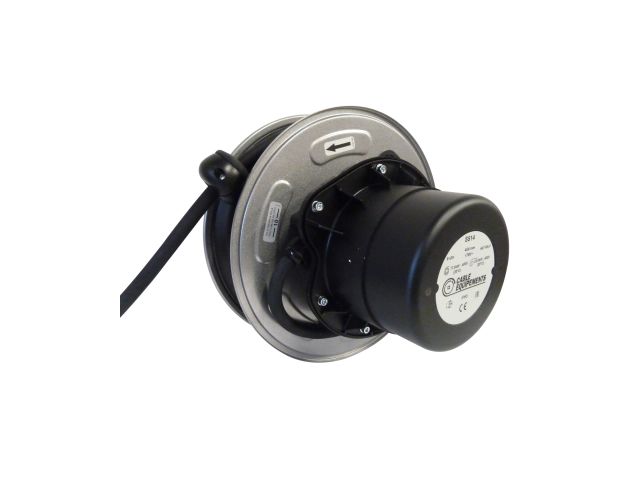

Automatic cable reels- STEEL 500 RANGE

Electric roller

“ Level of protection IP65 ”
Ask for a quote Receive Documentation Contact the supplier

The industrial range


− Length: up to 22 meters

− Cables: from 1 to 12 conductors

                from 1 mm² to 35 mm²

− Collector: up to 100A

− Degree of protection: IP65

− Temperature of use: -5°C/+50°C

− Collector insulation voltage: 2,5 kV

− Maximum winding speed: 30 m/minute

− Case: open in varnished steel

− Winding spring: high quality steel, long lasting over time

The reels are equipped with roller cable guidance and a stop ratchet (which can be removed).



All models exist in 2 versions:

- P version: with swivelling bracket

- F version: with fiwed bracket

The fixed bracket is mandatory in case of vertical unwinding.



The reels are delivered with cable.

All models are also available without cable (code ERSC…).

In this case, the installation of the cable is the responsibility of the customer.



Provide protection upstream of the reel, cutting all phases and taking into account the most unfavourable situation (coiled cable).


The cable should enter the center of the cable guide, without sharp corners or chafing.


Given the technical nature of this range, it is recommended that you consult us to define the appropriate model depending on the intended use.

The industrial range

− Length: up to 22 meters

− Cables: from 1 to 12 conductors

                from 1 mm² to 35 mm²

− Collector: up to 100A

− Degree of protection: IP65

− Temperature of use: -5°C/+50°C

− Collector insulation voltage: 2,5 kV

− Maximum winding speed: 30 m/minute

− Case: open in varnished steel

− Winding spring: high quality steel, long lasting over time

The reels are equipped with roller cable guidance and a stop ratchet (which can be removed).



All models exist in 2 versions:

- P version: with swivelling bracket

- F version: with fiwed bracket

The fixed bracket is mandatory in case of vertical unwinding.



The reels are delivered with cable.

All models are also available without cable (code ERSC…).

In this case, the installation of the cable is the responsibility of the customer.



Provide protection upstream of the reel, cutting all phases and taking into account the most unfavourable situation (coiled cable).


The cable should enter the center of the cable guide, without sharp corners or chafing.


Given the technical nature of this range, it is recommended that you consult us to define the appropriate model depending on the intended use.

Painted steel and polymer case Horizontal and vertical travel Collector 20A, 50A or 100A depending on the models Use temperature - 5 °C/+50°C Maximum winding speed: 30 m/minute
Download the complete technical features
