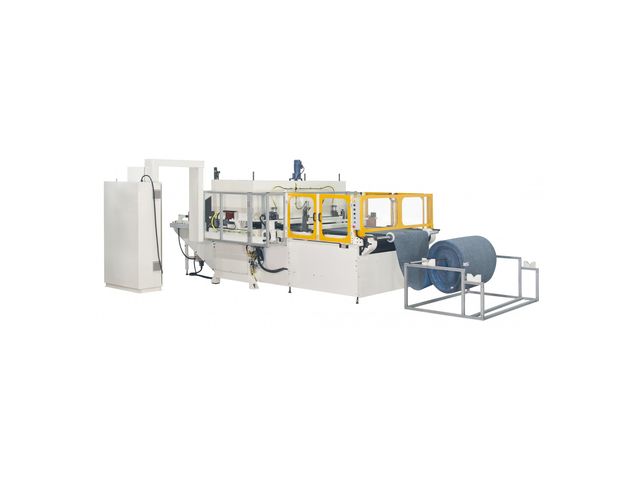

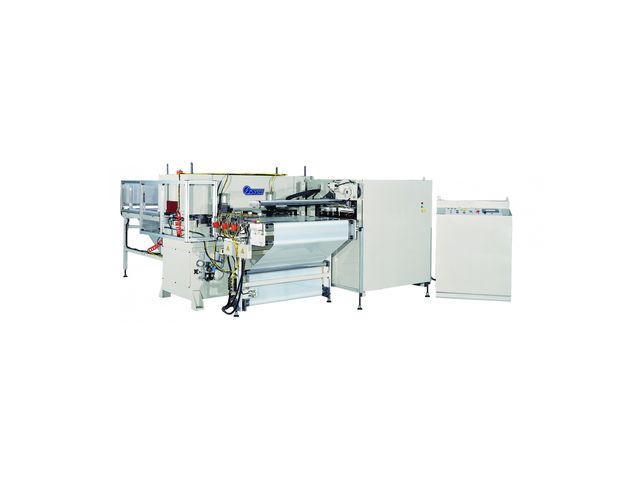

Automatic full head die cutting press : SYSCO - HBC for Honeycomb Cardboard

Automatic full head die cutting press : SYSCO - HBC for Honeycomb Cardboard - DOREY

Quote Automatic full head die cutting press : SYSCO - HBC for Honeycomb Cardboard

Automatic full head die cutting press : SYSCO - HBC for Honeycomb Cardboard DOREY

Automatic full head die cutting press : SYSCO - HBC for Honeycomb Cardboard

Cutting press

Vote

Ask for a quote

Presentation

Feeding material by motorised conveyor belt
Clamping beam feeding system with mechanical or motorised stops
Speed up to 30m/min with accuracy positioning of + / - 0.2mm per servomotor
Material coming from rolls or sheets

GENERAL DESCRIPTION

Four columns press with mechanical balancing system - SYSCO exclusive
Cutting power from 30 to 400 Tons
Cutting area from 900 x 600 to 2500 x 1200 mm
Cutting stroke from 250 mm
4 manual or motorised mechanical stops accuracy +/- 0.01 mm
Trough cutting or kiss cutting on Picard steel plate 60 HRC accuracy +/- 0.01 mm
Slow down speed of the bridge: 10 mm before touching the material
Quick change of dies
Touch screen control in different languages
Use of electrical, hydraulic and pneumatic standardized
Safety guards protection and / or photocells Class 4
Meets C.E. standards
