Die cutting system for kiss cutting

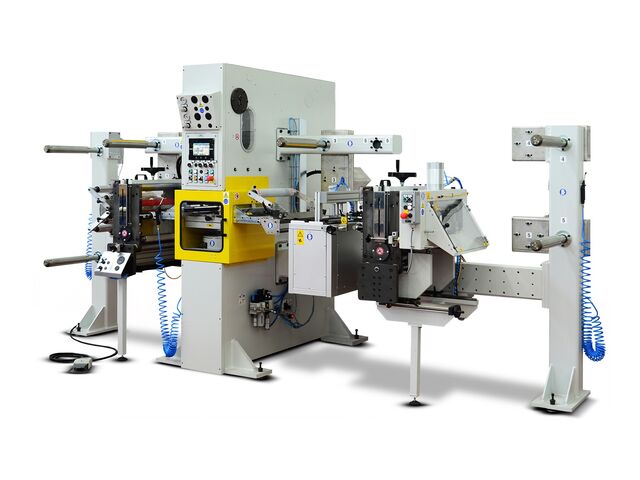

The flat-bed, die cutting machine for kiss cutting type NE-FB is designed to process flexible materials such as foams, plastic films, laminated materials, etc.
TECHNICAL DATA
-
Max web width (processed material width): 300 mm, 400 mm, 600 mm.
-
Fully electrical machine, no hydraulic systems involved.
-
Up to 35 tons of cutting force.
-
Up to 80 m/min speed.
-
Up to 150 strokes/min.
-
Unwinders: up to 600 mm roll diameter, pneumatic expanding shafts for 3” core, pneumatic brake (also available with AC motor for web loop control). Web loop light sensor or dancer roll.
-

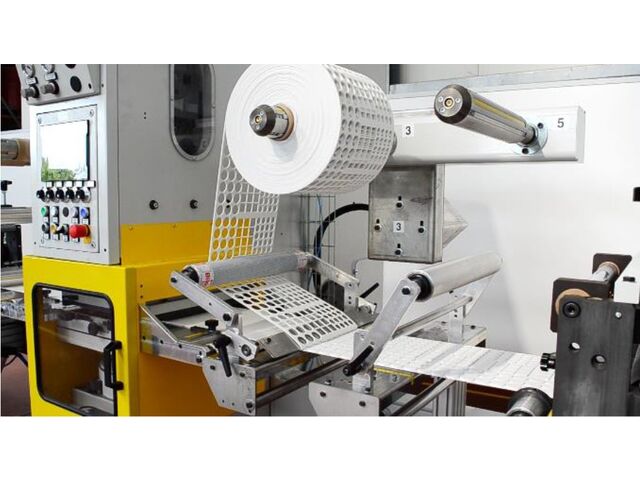

Winders: trim or liner web winders up to 400 mm roll diameter, web winders up to 600 mm roll diameter, pneumatic expanding shafts for 3” core, controlled with high-slip AC motor.
-
Web guides: idle rollers for web guide, with adjustable position through easy openable handles.
-
Web control units: three shafts to feed, laminate or slit the web. Each web control unit is independently motorized and can be applied in various machine positions.
-

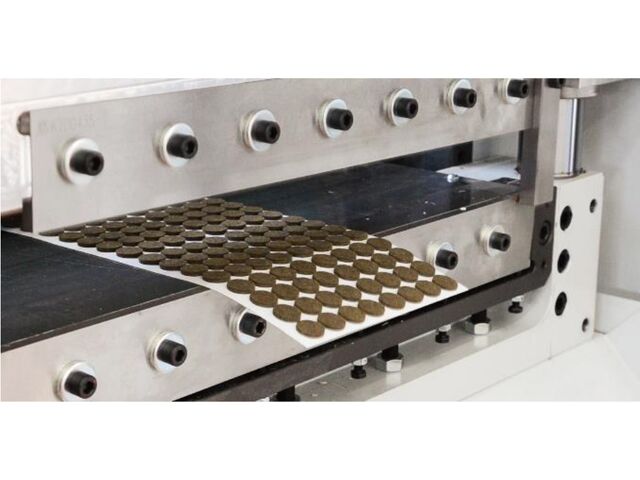

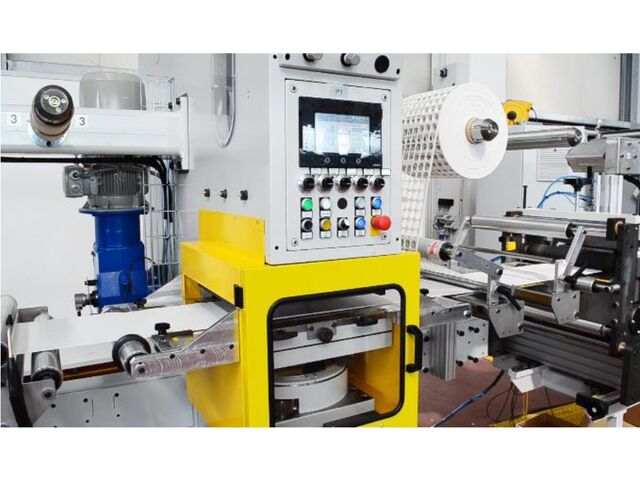

Flat-bed cutting unit: top plate vertical stroke 60 mm, prismatic guides to easily mount and remove the die, bottom reference plate vertically adjustable (stroke 20 mm) with planarity guaranteed within 0.02 mm.
-
Trim ejector units.
-
Sheet cutter equipped with guillotine unit.
-
Safety: dangerous machine zones are protected with safety guards connected to safety switches. Machine safety is controlled by a safety PLC.
SIZE AND POWER (NE-FB-400 MODEL, WITH 2 UNWINDERS AND 3 REWINDERS)
-
Overall machine dimensions: 5.3 x 2.3 x 2.4 m
-
Approx. weight: 6,000 kg
-
Installed power: 12 kW
