Biko - EDP-N

Cutting press

Vote

Ask for a quote

Presentation

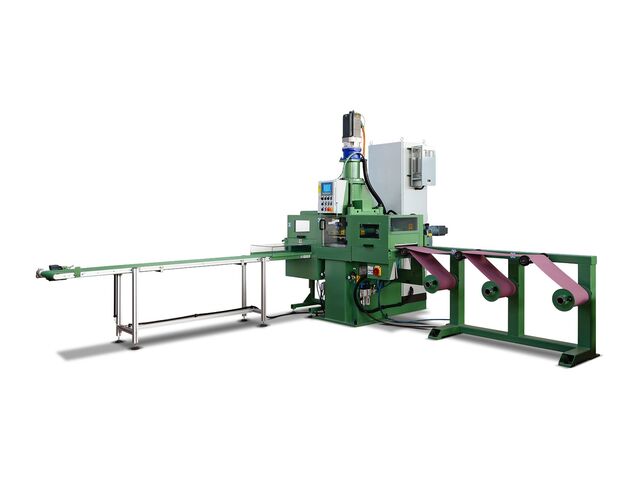

The Die Cutting machine type EDP-N represents the highest automated system to cut various types of materials into the desired shapes.

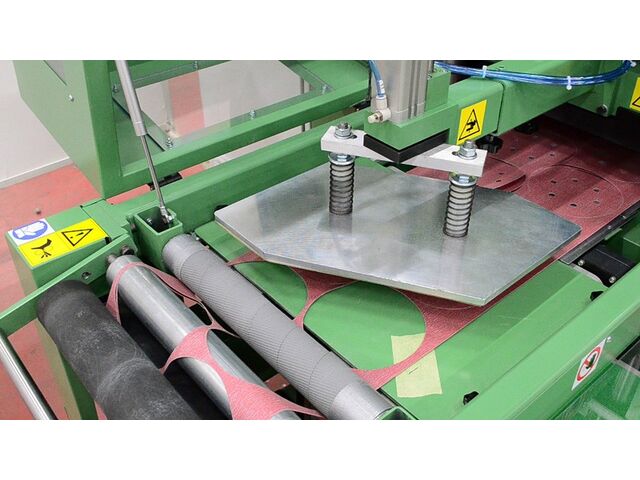

Feeding of material is automatic and managed by a double set of motorized conveyor belts.
Machine power permits to cut shapes of various sizes.
Supported materials range from light to heavy; different thicknesses can be processed.
Depending on the material, more layers can be cut at the same time.

TECHNICAL DATA

Useful material width 310 mm
Feeding system by pressing beam working against motorized conveyor
25 tons of cutting force
Able to cut more web layers at the same time (up to 3 layers)

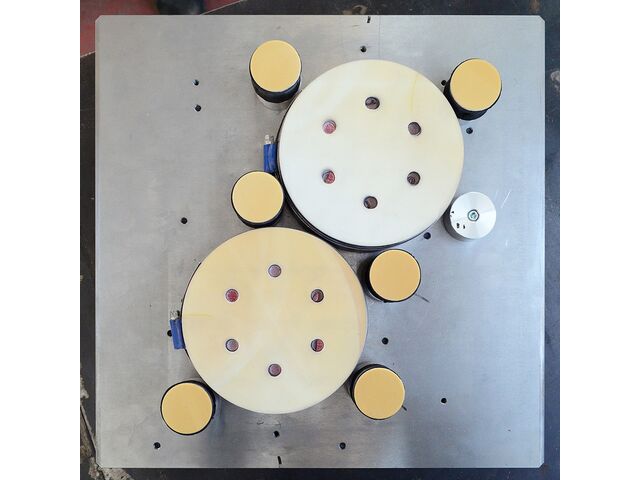

300 x 300 mm cutting tool mounting board
Unwinding station for 3 rolls up to 500 mm diameter
Scrap material, from hole punches, is automatically collected and vacuumed from the cutting tool
Automatic cut shapes stacking, number of parts on stack settable via touchscreen
A dedicated software manages the whole process and a touch screen allows the operator to change all the settings

OPTIONS

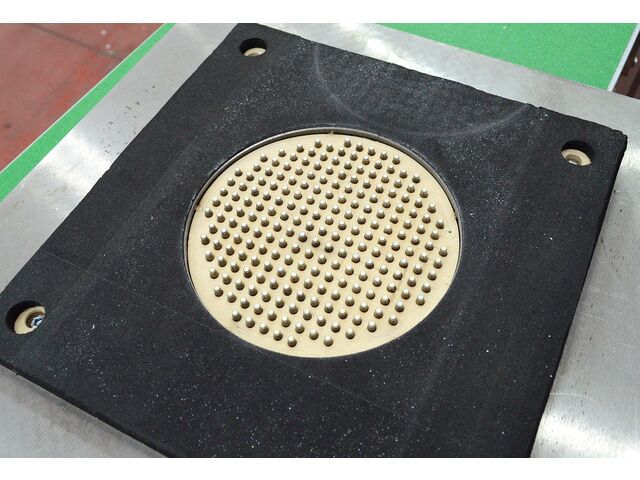

Cutting tools of various shape and size

SIZE AND POWER

Overall machine dimensions: 4.2 x 3.3 x 2.6 m
Approx. weight: 2,000 kg
Installed power: 20 kW
Air consumption: 12 Nl/h
