AV5A Air Admittance Valve With Couplings EDWARDS SAS

AV5A Air Admittance Valve With Couplings

Other valves

Vote

Ask for a quote Receive Documentation Contact the supplier

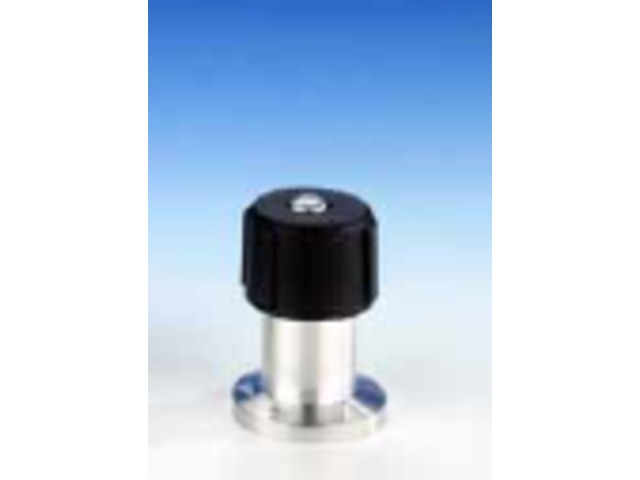

The AV5A is manufactured in aluminum alloy. It has a control knob attached to a screw-actuated plunger: turn the control knob clockwise to close the valve. A nitrile ‘O’ ring seals the plunger to the valve body.

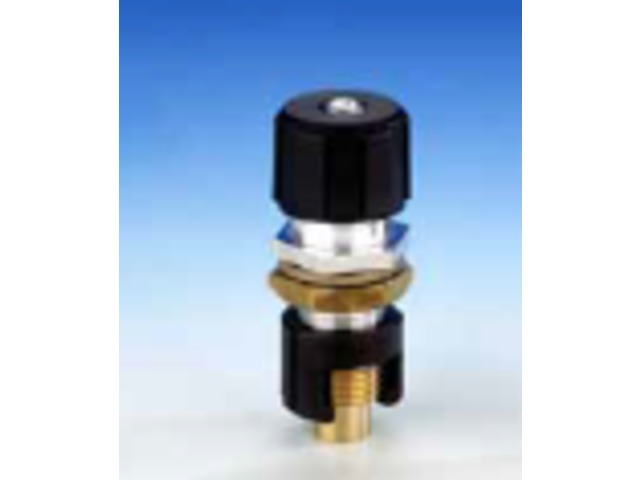

The valve can be connected directly, pipeline supported or panel mounted, and is connected to the vacuum system with the Edwards SC5 coupling (supplied).

Leak rate across seat : 10-7 mbar ls-1 / 8 x 10-8 Torr ls-1 Leak rate through body : 10-1 mbar ls-1 / 8 x 10-2 Torr ls-1 Panel mounting : diam 17 mm / Ø 0.66 in hole, 3 mm / 0.117 in maximum thickness Vacuum connections : SC5 couplings or 3/8 inch BSP threaded body and bonded seal Weight : 85 g / 3 oz
Download the complete technical features
