EDWARDS SAS

Solenoid Operation Isolation Valves IPV16EKA, 220-240V, 1-ph 50/60Hz, aluminium EDWARDS SAS

Solenoid Operation Isolation Valves IPV16EKA, 220-240V, 1-ph 50/60Hz, aluminium

Other valves

Vote

Ask for a quote Receive Documentation Contact the supplier

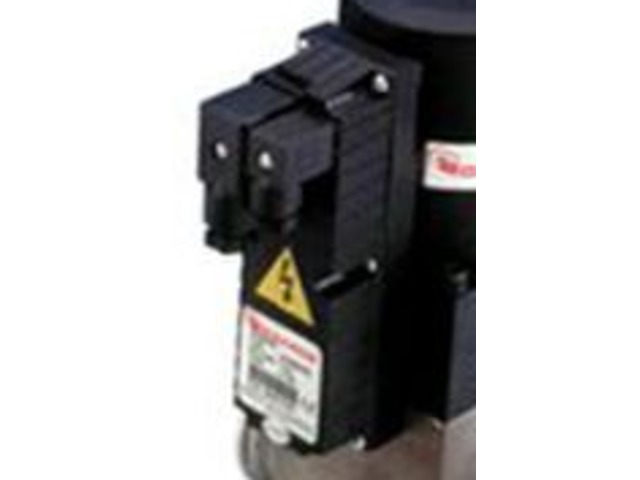

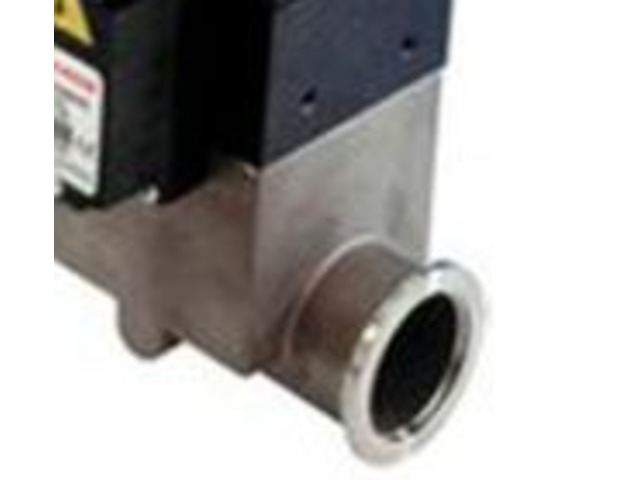

The Edwards IPVEK series valves are compact, light-weight electromagnetic vacuum valves suitable for use in vacuum pipeline systems down to 1 x 10-9 mbar.

A double wound coil combined with an electronic switching circuit ensures low energy consumption, low operating temperatures and extended operating life.

Bellows sealed, the IPVEK solenoid operated in-line valves are available with either aluminum (A) or stainless steel (S) bodies, with an overall MTTF of up to 500,000 cycles.

Valve actuation type : Single acting, electrically opened, spring closed Pressure range valve open : 1 x 10-9 to 2000 mbar, 7.5 x 10-10 to 1500 Torr (30 psi) Rapid cycling : <25 °C Valve open : <10 °C Bellows reliability, MTTF : 5000000 cycles Molecular conductance (ls- 1) : 2 Time to open (ms) : 40 Time to close (ms) : 100 Maximum continuous power 220 V a.c. rms (W) : 4.5 Weight (g/oz) : 800/28
Download the complete technical features
