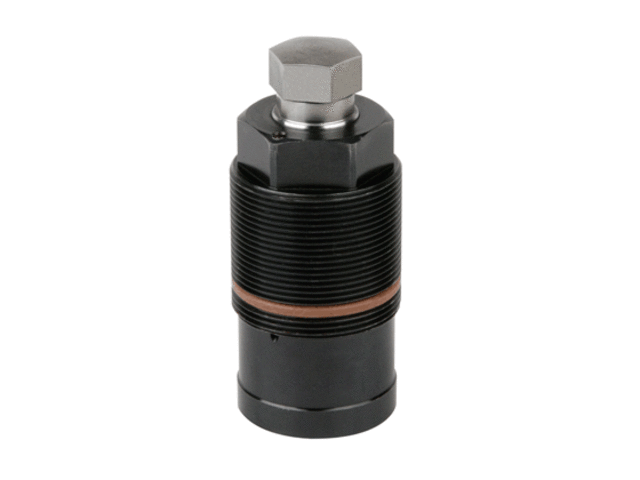

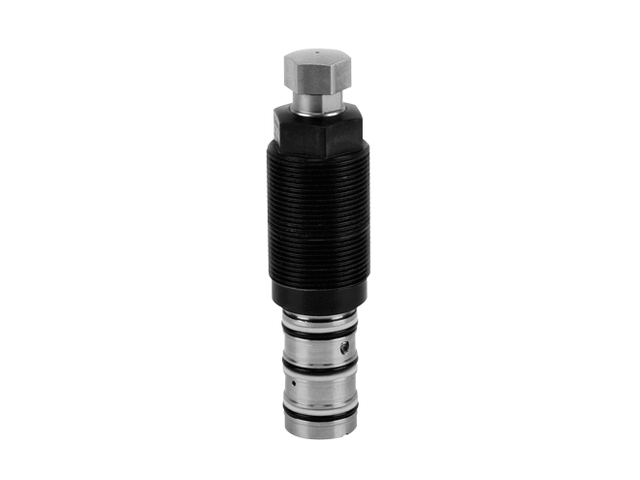

Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also vibration and deflection under machining loads. The threaded-body design allows for spacesaving and direct installation into the fixture body. Oil supply is made through drilled channels.
●●Space-saving threaded-body version
●●3 types of operation
●●Contact force by spring or pneumatically adjustable (1941-201)
●●Load force up to 15 kN
●●Metallic wiper edge and FKM wiper
●●Venting of the spring area
●●Connection of positive air pressure protection is possible
●●Mounting body as accessory
