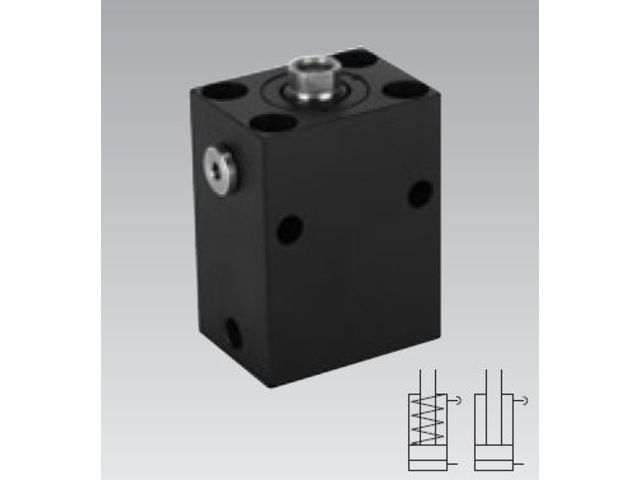

Single-acting block cylinders can be used for all hydraulically-operated linear movements that do not require a retraction force or where the piston is retracted by an external force.
● 8 sizes each with 2 stroke lengths available
● Large range of diameter Piston Ø 16 up to 100 mm
● Large range of stroke 8 up to 100 mm
● Large range of force 2 kN for piston Ø 16 mm and 100 bar 392 kN for piston Ø 100 mm and 500 bar
● Large retention force
● Compact block design
● Many fixing possibilities
● Many connecting possibilities
● Case-hardened piston rod
● Alternatively NBR or FKM seals and wiper
● Operating temperature up to 200 °C with FKM seals
● Minimum leakage
● Maintenance free
